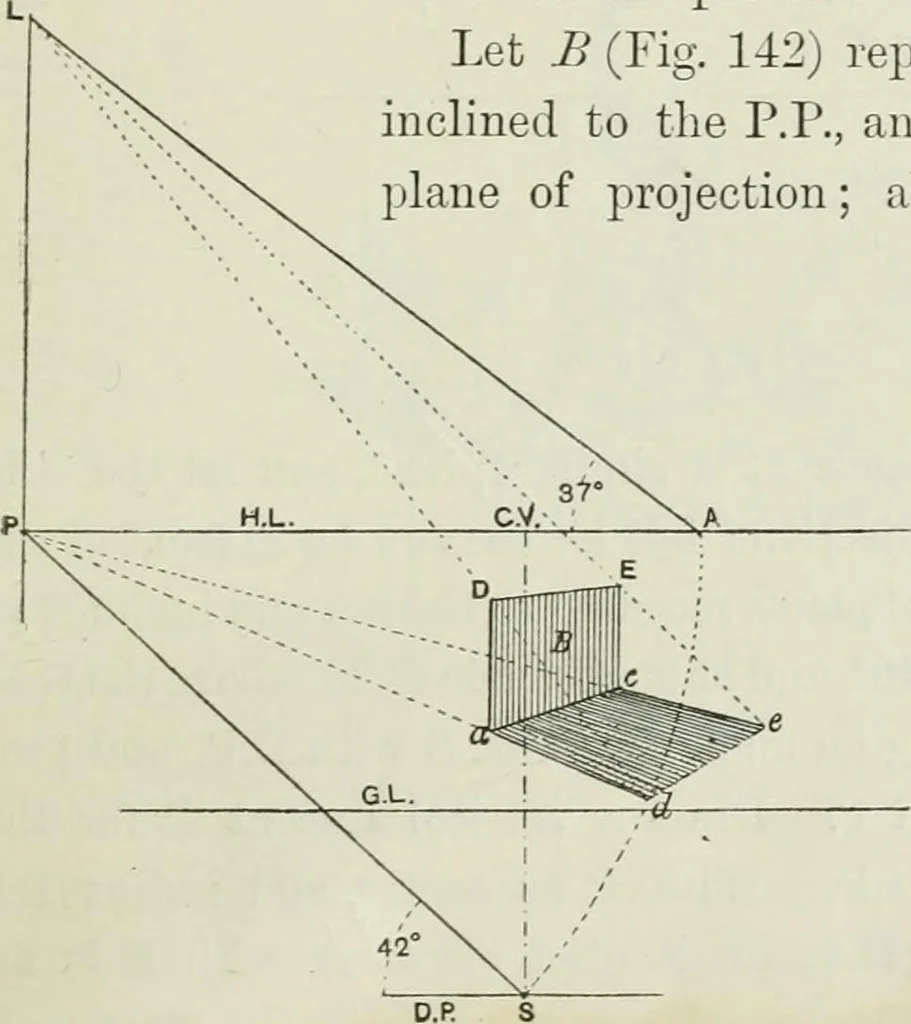

t the G.P. be theplane of projection; also let the sun be inthe plane of the pic-ture [98] at an altitudeof 30° above the G.P.,on the spectators left.Draw a line fromD, at an angle of 30^with the G.P., to meeta horizontal line froma in d. Find the pointc in a similar manner,and join de. Thenaced is… … 202 COMPLETE PERSPECTIVE COURSE chap. of 42 to spectators left, and at an altitude of 37 abovethe G.P. Draw a line making an angle of 42 at the station point (S)with D.P., and produce it to meet H.L. in P. Draw a verticalline at P for the V,L. of the plane of shade. With P as centre,and radius PS,…
