Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 228

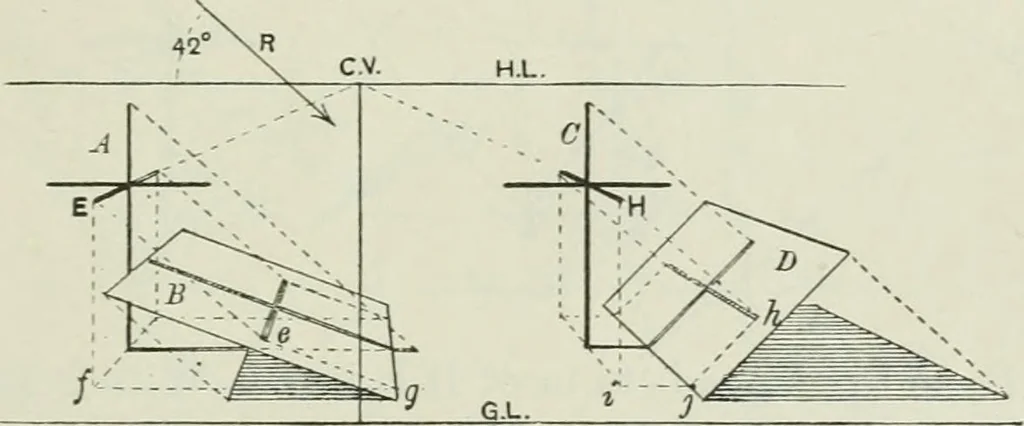

rom ^ to meet the lower edge of the plane 6in li.Draw a line from F parallel to K to meet a vertical line on h in/. Determine the other points in a similar manner, and jointhem, as sho^vn. Problem 71 1. Project the shadow of the dovhie cross A (Fig. 147) -^/po^t the inclined jplane B; the sun to he… … Fig. 147 line from/to meet the lower edge of the plane B in g. Drawa line from E parallel to E to meet a line drawn from g parallelto the nearer edge of B in c. Determine the other points in asimilar manner, and join them, as shown. 2. Determine the seat of the point H in i. Draw a hori-zontal line…
Perspective
