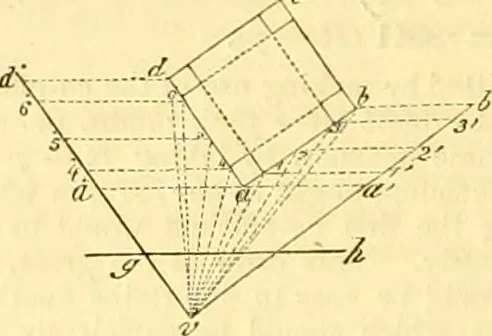

ons just given,successfully demonstrated the leading principle, I shall now endeavour toapply the foregoing rules to some of the most obvious and general examplesin perspective. The author has given full instructions and rules for the applicationof the system to Parallel perspective, followed by… … Let the length of a side be 30 feet, and the height 38 feet. Letthe length of the radial vg be 40 in., and that of the radial r h 30 in.;then the distance between gA will be equal to 50 in. Upon the plane of the picture draw gk, and make it equal to 50 in.(See engraving bdow.)
