Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 243

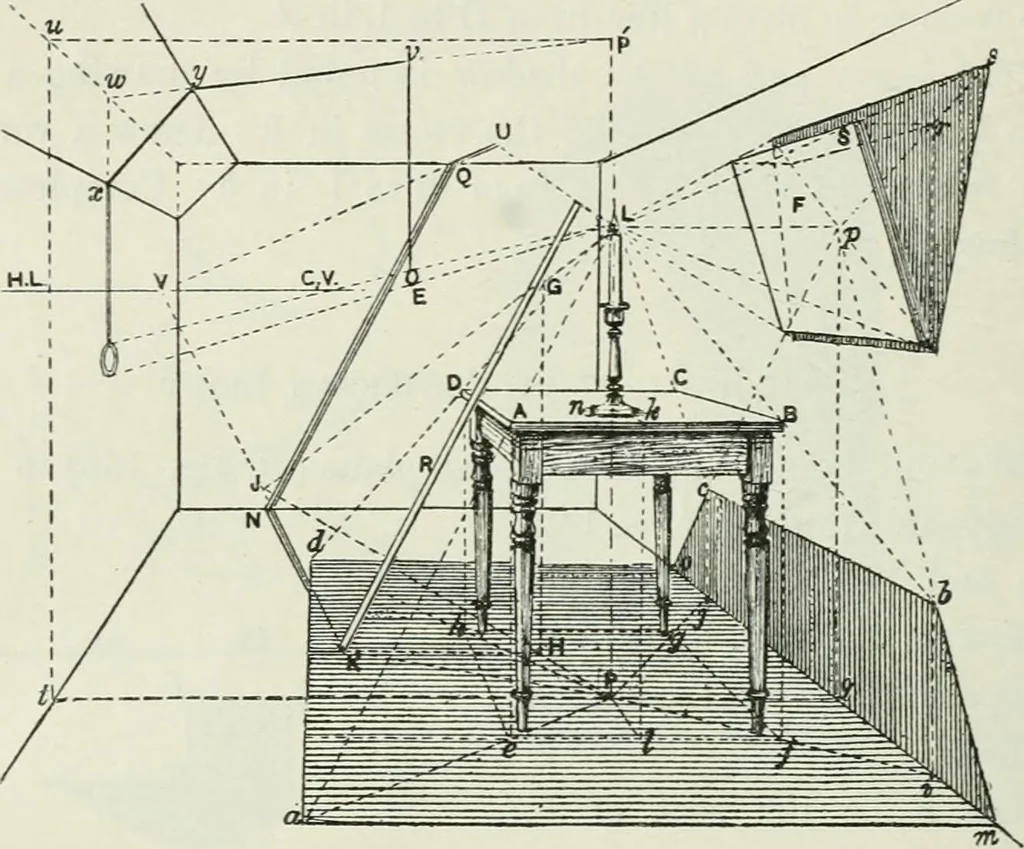

e on the Fig. 156 Find the shadow of E inThen aced is the shadow of 220 COMPLETE PERSPECTIVE COURSE chap. floor as follows :—Draw a vertical line from A to meet a linedrawn from P.D. through the lower end of the table leg in e.Draw a horizontal line from c to meet a vertical line from Bin /. Draw… … Fit;. 157 a line from C.V. through n to meet the edge of the table in /,.Draw a vertical line from Iz to meet cf in /. Draw a line fromI to C.V. to meet a vertical line from L in V. Then P is theseat of L on the floor. Draw a line from P through c to meet a line from L throughA in a. Find the…
Perspective
