Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 250

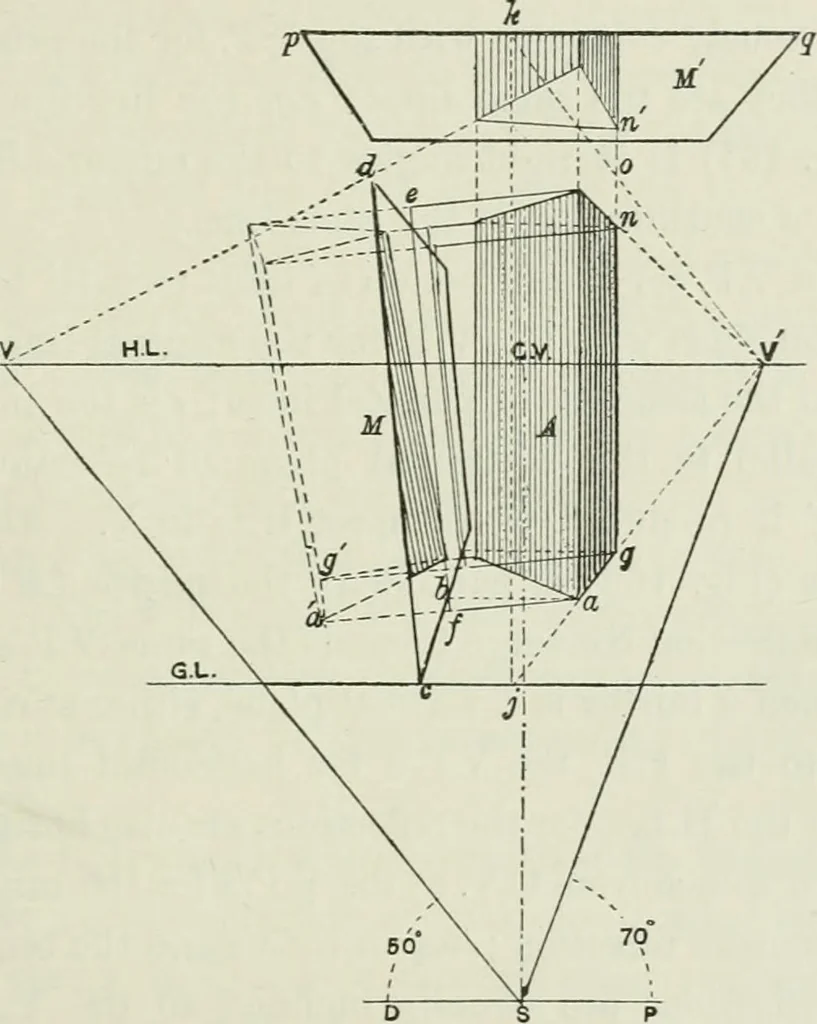

o C.Y. in C. Determine all the other points, the construction for whichis shown, in a similar manner, and join them to complete thereflection. xi sciographv or the projection of shadows 227 Problem 82 1. Let A (Fig. 162) he an equilateral triangular jj/isw, and M an inclined i)lane of reflection,… … FiK. 162 1. Draw a horizontal line from a to meet the lower edge ofM in h. Draw the line he parallel to cd. Draw a line from aat right angles to he produced, and intersecting it in /. Make fa =fa. Determine the reflection of all the other points, theconstraction for which is shown, in a similar…
Perspective
Internet Archive · OCAD University Library · Public Domain Mark 1.0. Free to use for anything.
