Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 277

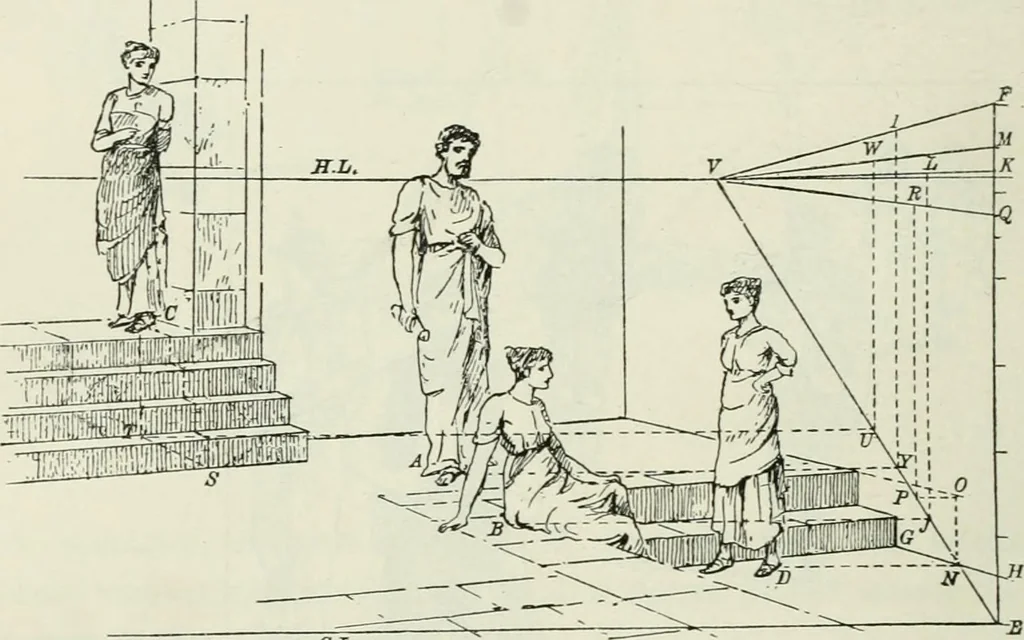

re, e.g. let us draw a figure of asimilar height standing at B. Divide the height EF into fourequal parts. Then the height EG of the lower three divisionsrepresents the perspective height of the figure. The heights ofall the other figures shown could be determined in a similarmanner. The… … Fig. 171 figures of given heights on horizontal planes at different levels. Let G.L. (Fig. 171) represent the ground line [4], and H.L.the horizon line. At any point E on the G.L. draw a vertical line EF, dividedinto six equal parts, and let this represent a scale of six feet. We wish to draw a…
Perspective
