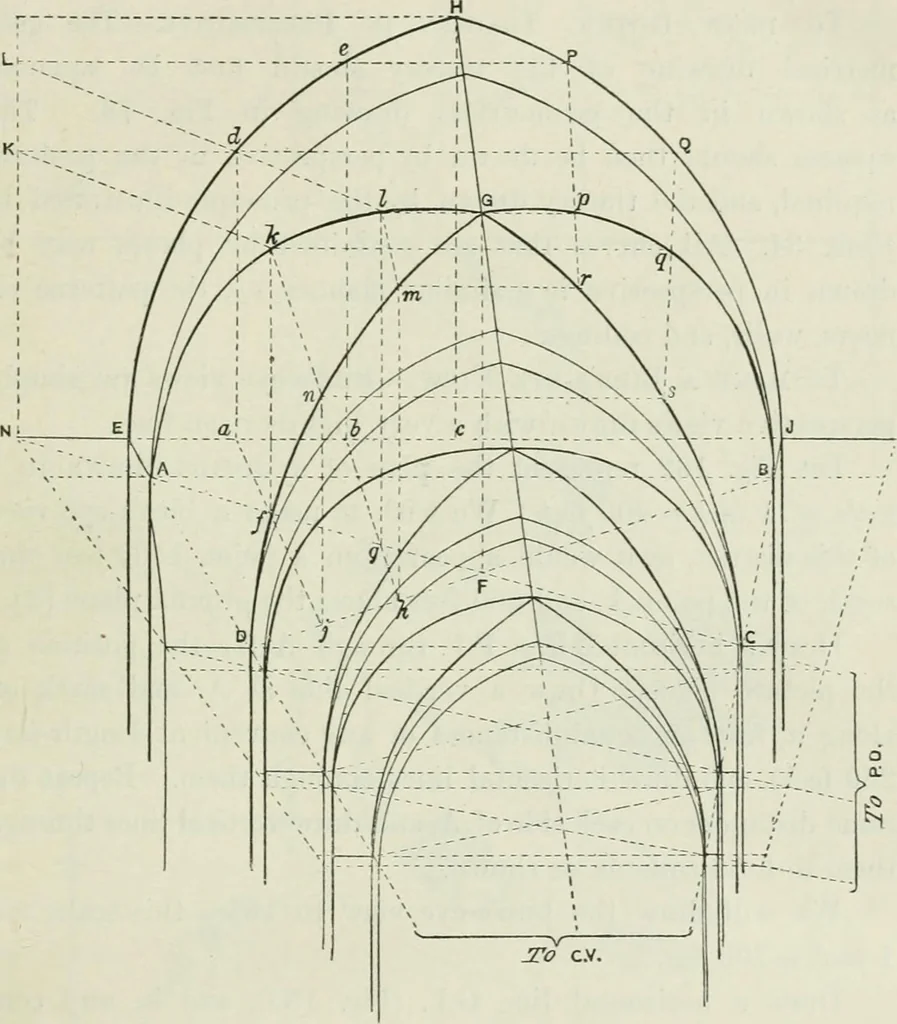

m H to the centre of vision in G.Produce CA to meet JE produced in N. Draw a vertical lineat X, to meet horizontal lines drawn from d and e in K and L.Draw lines from a and h to the centre of vision, to intersect thelines AC and BD in the points fg and jh. Draw lines from L PERSPECTIVE FOR… … Fig. 181 of the arch in the points P and Q. Draw lines from P and Q toC.V. to meet horizontal lines drawn from / and k in the pointsy and ^. Draw a fair curve through the points B, q, p, G. Drawvertical lines aty and h to meet lines drawn from /.■ and / toC V, in the points n and m. Draw a fair…
