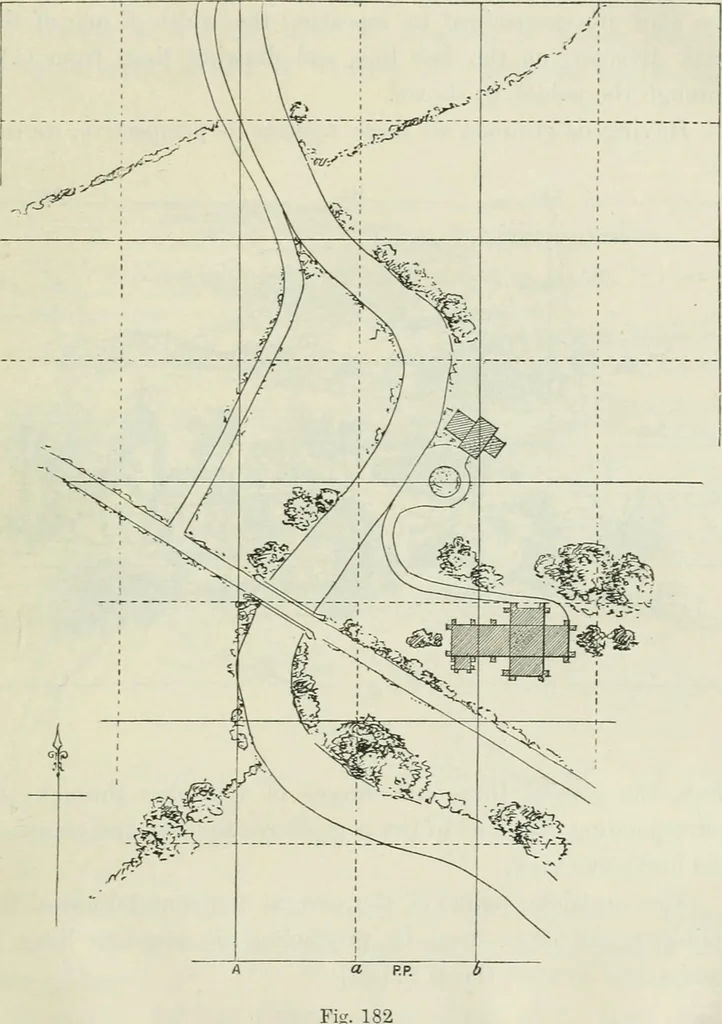

2| inches high (500 feet), to find the pointC.V. [14]. Draw a horizontal line (H.L.) through C.V. forthe level of the spectators eye. As we have not room to findthe point of distance (1500 feet), we will take one-third of thisdistance from C.V. along H.L. for J D.P. (p. 59). Set off on G.L., to the… … Set otf Ac, equal to oue-third of Aa, and join c to CY.Draw a line from c to ^ D.P., to meet the receding line from Ain </. Draw a horizontal line throurfi d for the first row of 272 COMPLETE PERSPECTIVE COURSE receding squares, and proceed in the same manner till the eightrows are determined.…
