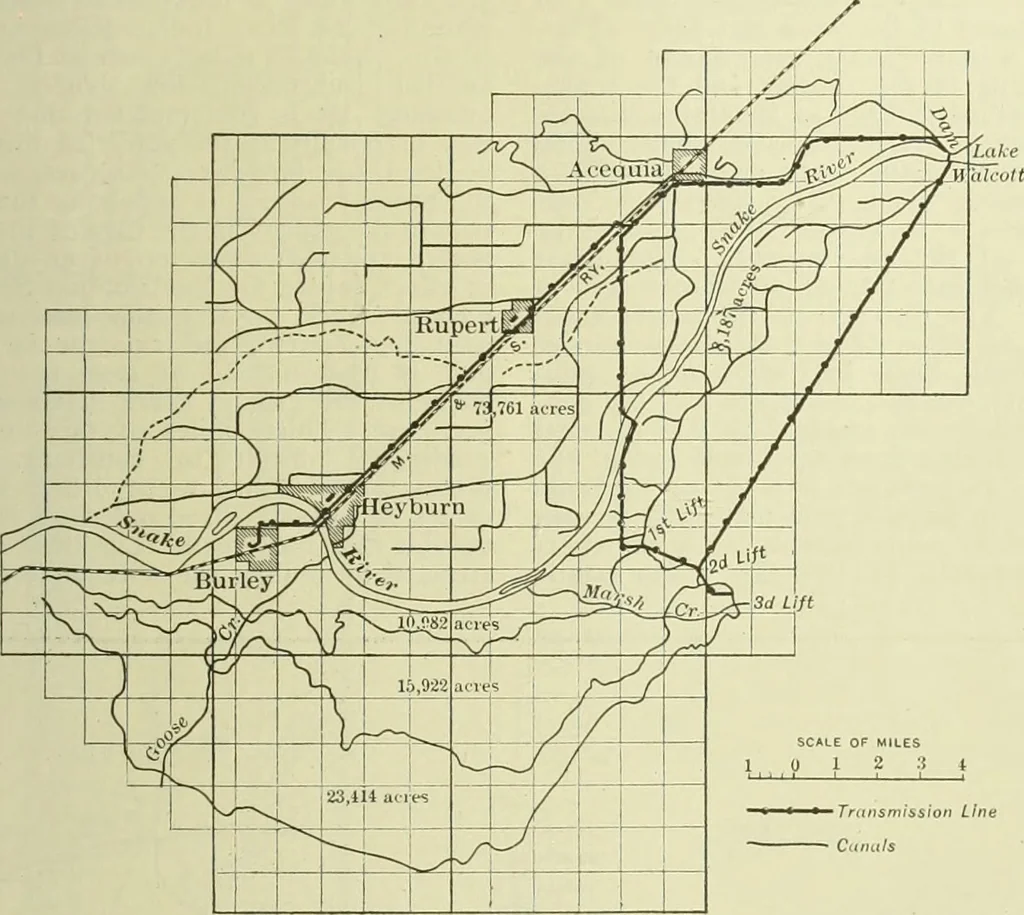

the guaranteedaverage efficiency between half and full gateis 77 per cent. The operating characteristics of the powerplant apparatus are as follows : Alternator, 1,400 kilovolt-amperes, 2,300volts, three-phase, 60 cycles, 200 rev. per min.;regulation at 100 per cent power factor, 8per cent;… … SCALE OF MILES 1 0 12 3 4 -Trunsmission Linn ■ Canals Fig. 1—Map of Minidoka Irrigation Project, Idaho, Sowing Canals and Transmission Lines to Pumping Stations. Project in Arizona. At Minidoka* water ispumped from gravity canals to high level can-als and at Salt River underground water ispumped…
