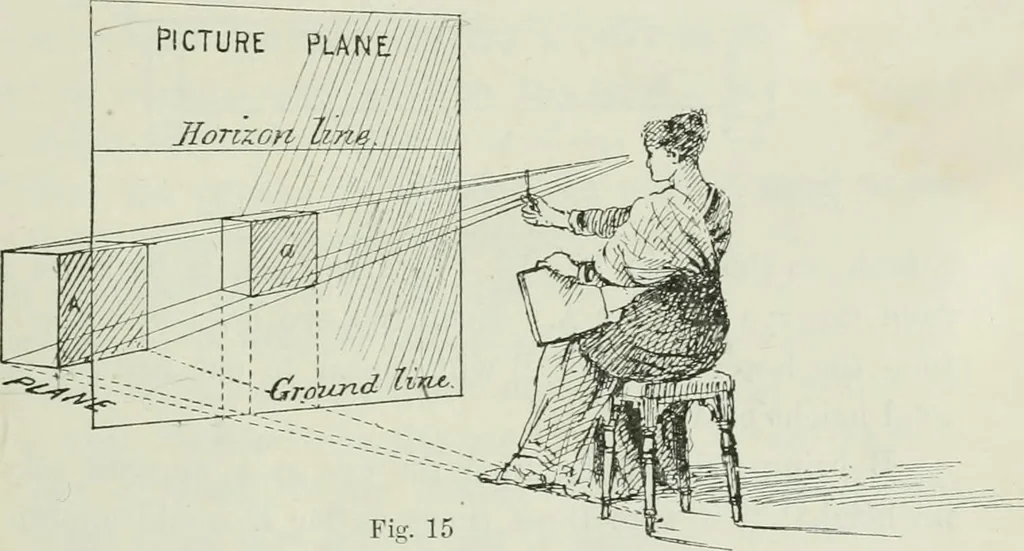

and tlie spectator on the other ; <( isthe tracing of the cube on the picture plane. 4. The Ground Line.—Tlie line in which the picture planemeets the ground plane is called the ground line; it is theboundary, towards the spectator, of the ground plane in thepicture ; it is also called the hose… … Fig. 15 The farther the object is removed from tlie picture planethe smaller will be its representation. When we are drawing an object in perspective, we aresupposed to be copying to a given scale the tracing on thepicture plane. The picture plane does not really exist; it isassumed to occupy a…
