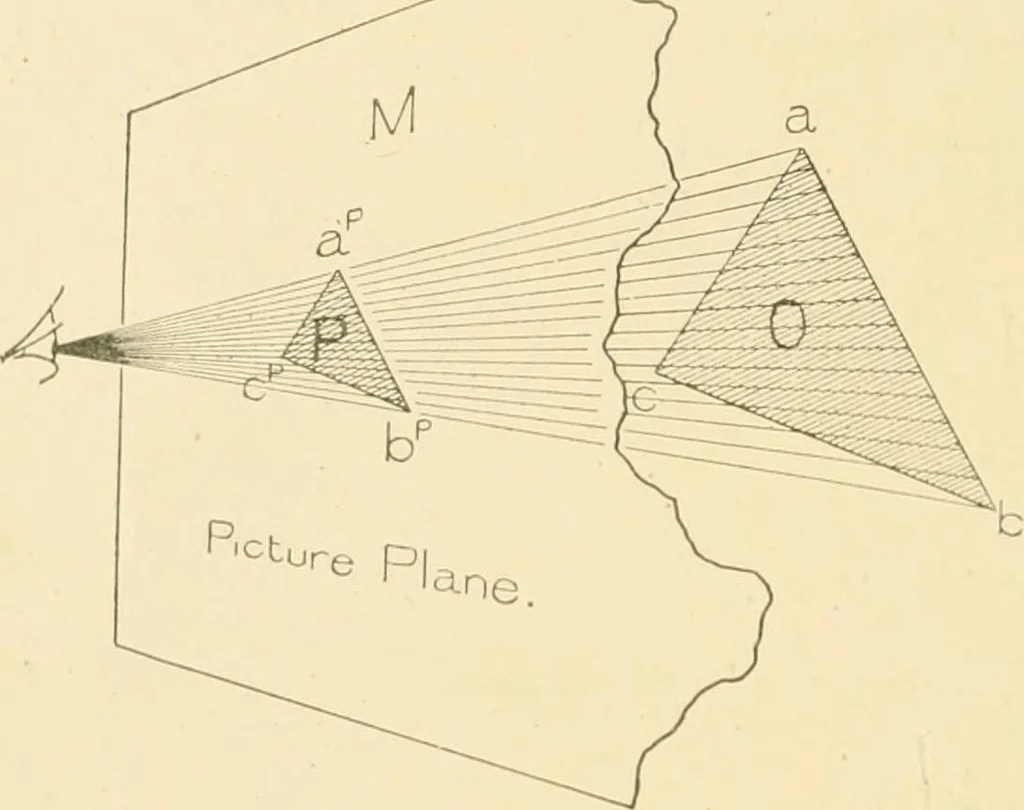

real object. 6. A projection such as that just described is known as aperspective projection of the object Avhich it represents. Theplane on which the perspective projection is made is called thePicture Plane. The position of the observers eye is called theStation Point, or Point of Sight. 7. It… … 76 PERSPECTIVE DRAWING. tatiou, upon a plane surface, of the appearance of objects as seenfrom some given point of view. 9. Before beginning the study of the construction of thepei-spective projection, some consideration should be given tophenomena of perspective. One of the most important of…
