Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 80

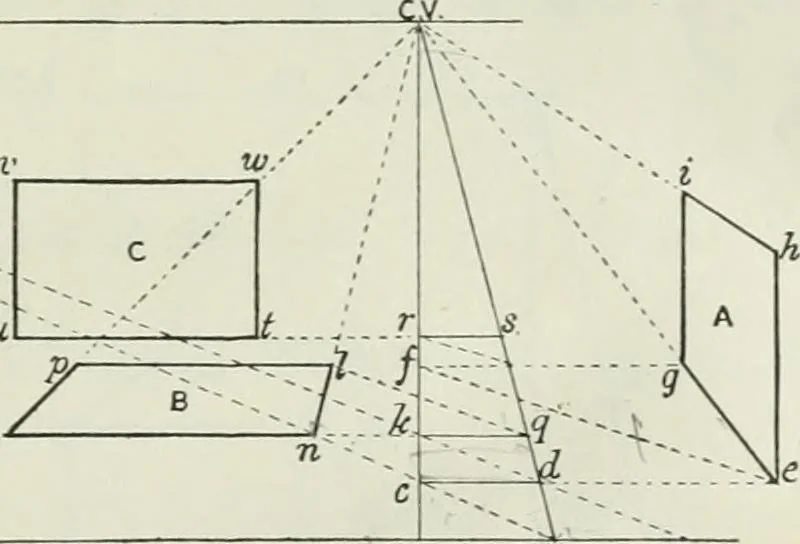

from P.P. a)ul 3 to spectators right.B to lie on the G.P., ivit/i its lomjer edges paralhi to P.P., and its nearest corner 2 from P.P. and 1 to spectators left.C to he pciici-lld to P.P., with one of its longer edges resting on the G.P., and its right-hand edge 5 from I.P. and 2 to spectator s… … GL, FiK. 50 Draw e to C.^. Erect a perpendicular eli = twice «/, and drawh to C.Y. Draw e to P.D. to meet the receding line from a in/. Draw a horizontal line from / to meet the receding line 58 COMPLETE PERSPECTIVE COURSE chap. from r in [/. Draw a perpendicular on g to meet the recedingline from…
