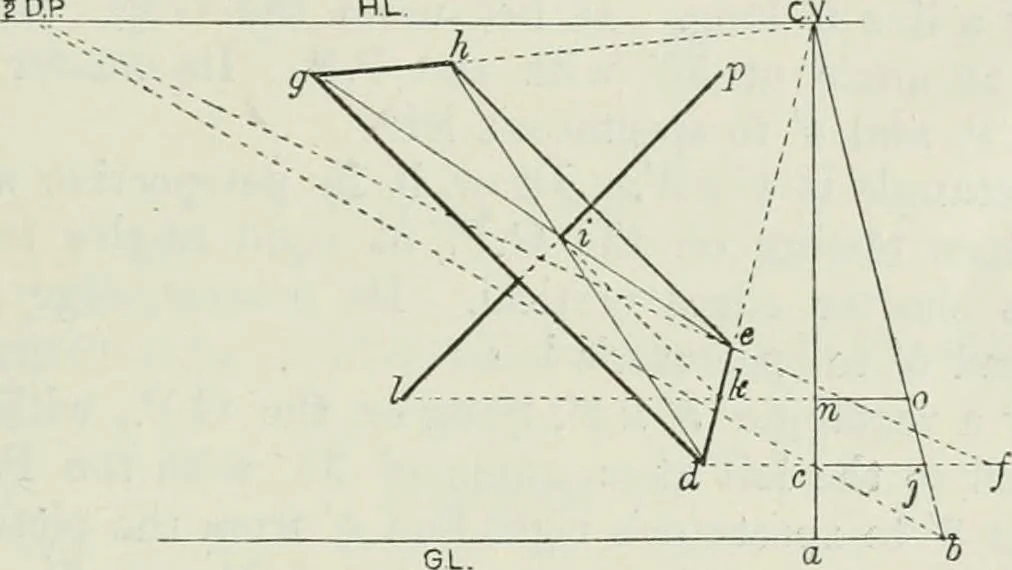

sing through its centre; its lower end to touch tltc G.P.Distance of P.P. = 12. Height of ci/e = 4:. Sccde J = 1.Fig. 50. 1. Find the G.L., H.L., C.Y., and perspective scale, as inProb. 5, also the h D.P., as in l^-ob. 9. PERSPECTIVE FOR SCIENCE AND ART STUDENTS 67 Find r/, the nearest end of the… … Pig. r.6 times rj in length. Join // to C.V. Draw cA parallel to dg. Thendglic is the square required. 2. Draw diagonals to the square, intersecting in i. Draw ikparallel to dg, and draw a horizontal line through k. Draw aline through i, perpendicular to ik, to meet this line in /.]\Iake Ip hve…
