Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 96

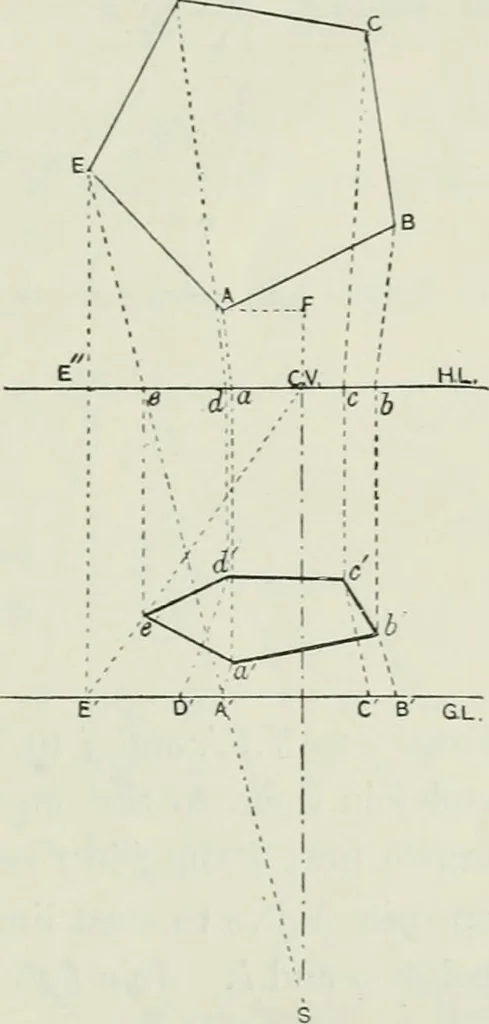

H.L. to be the posi-tion, in plan, of the P.P., and drawvisual rays from each corner of thepentagon to S, meeting the H.L. inthe points e, cl, a, c, h. Diaw per-pendiculars from the points of thepentagon to meet the G.L. in thepoints E, D, A, C, B. To avoidconfusion only one line is drawn(EEE).… … Fig. 60 Join these points, as shown. Problem 19 Draw a regular hcoxigon of 3 side, lying on the G.P., with one ofits sides parcdlel to the P.P., and its nearest right-handcorner 6 from the P.P. and 1 to the spectator s right. Distance of P.P. = 8. Height of eye = 4. Scale ^^ = 1,Fi 61. Find all the…
Perspective
