Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 98

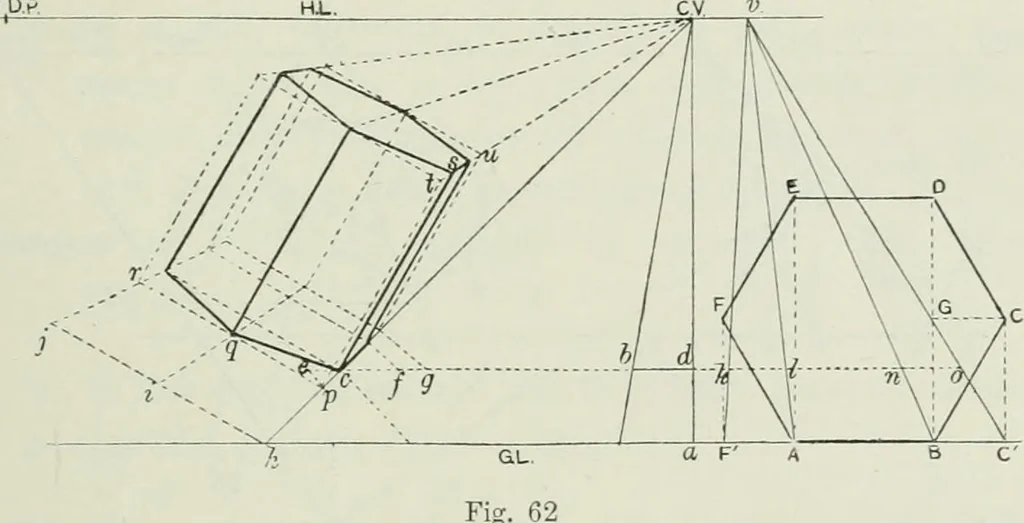

m tlieseveral points to meet the G.L. in the points F, A, B, and C.Assume any point v on tlie H.L. and join these jioints to it,meeting a horizontal line tlirough c in the points Jc, I, n, o. Draw a horizontal line from the angle C of the hexagon tomeet the perpendicular BD in G. Draw a line from… … length to three and a half times M. This gives point s. Setoff ce equal to half of U, and draw a line from | D.P. throughe to meet the receding line from li in p. Also set off cf andfg, equal to half of hi, and no, and draw lines from / and g toI D.P. to meet the same line. Draw lines from these…
Perspective
