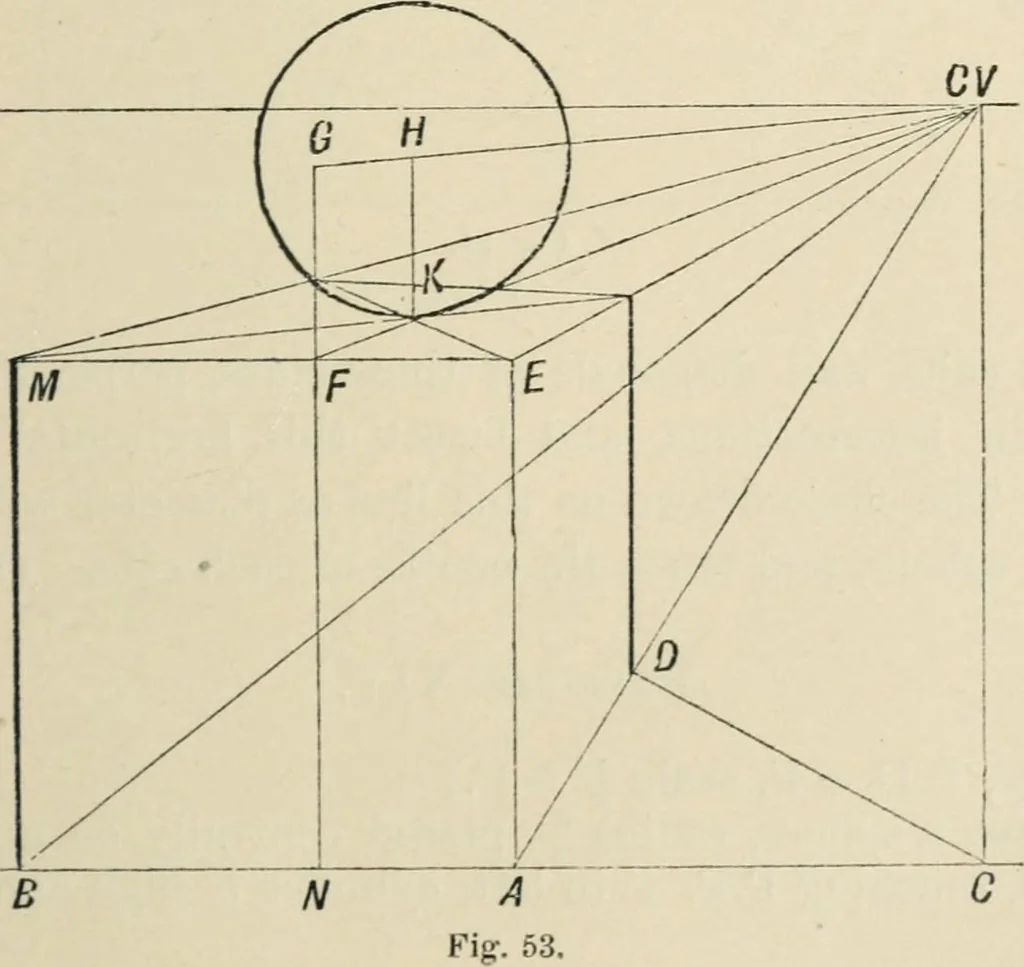

y determined in perspec-tive, if drawn in any but a direct view. The sphere rests on theground at a point directly beneath the centre, and it touchesP.P. at a point perpendicular to the vertical, from the centre.Example 1.—Draw a sphere, radius 2, resting on groundat a point 3 to right and 2 within… … 90 DRAWING. Here CA = AB = AD = AE = 4, EF = FM = 2, GF=Hhence K is centre at intersection of diagonals and HK = GF.(Fig. 53.) Xqte.—The sphere will not touch the P.P. unless HK =KF. Example S.—Draw a cube, edge 4, touching P.P. 4 toright, and in this place a sphere whose radius = 2. Here thesphere…
