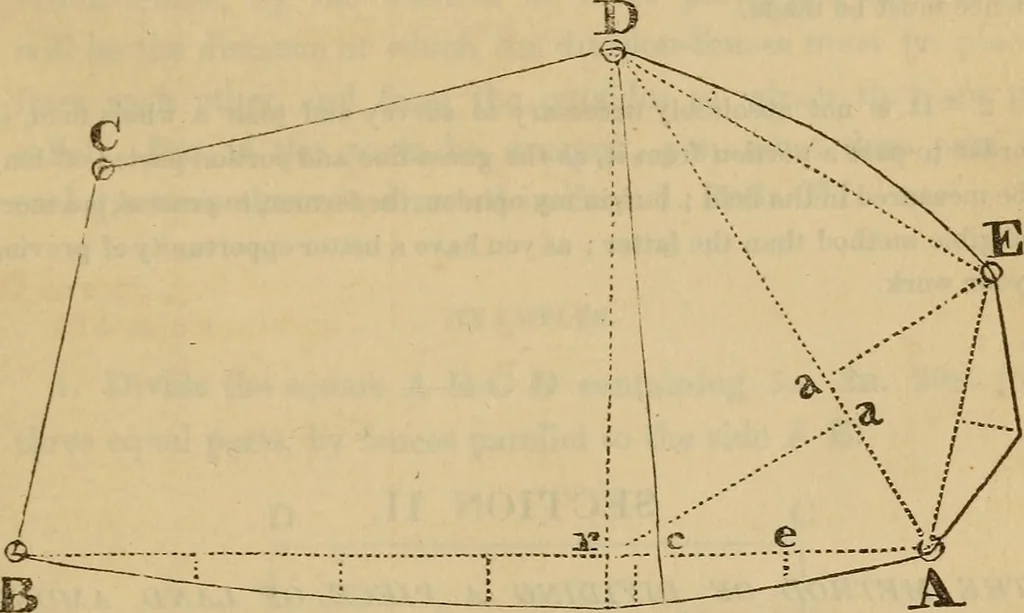

ield, whose dimensions are contained inthe following notes, part off 2a. 3r. 20p. toward the line A E,by a fence made from the angle D to the side A B. EB 1398 1000 R. off E. CE 1240 1000 500 R. off C. AC 1260 1000 R. off A. E A 0 400 80 200 0 000 R. offE. DE 0 600 25 450 35 300 20 150 0 000 R. off… … H J1 the area of the offsets takenon the different lines. Having laid down the figure, draw the guess-line D n, which suppose = 766 links ; then the diagonal A D will he = 824, the perpendicular Ea = 278, and the perpendicular r a = 372 links; r e also will be = 228, and r n = 52 links. sq. links.…
