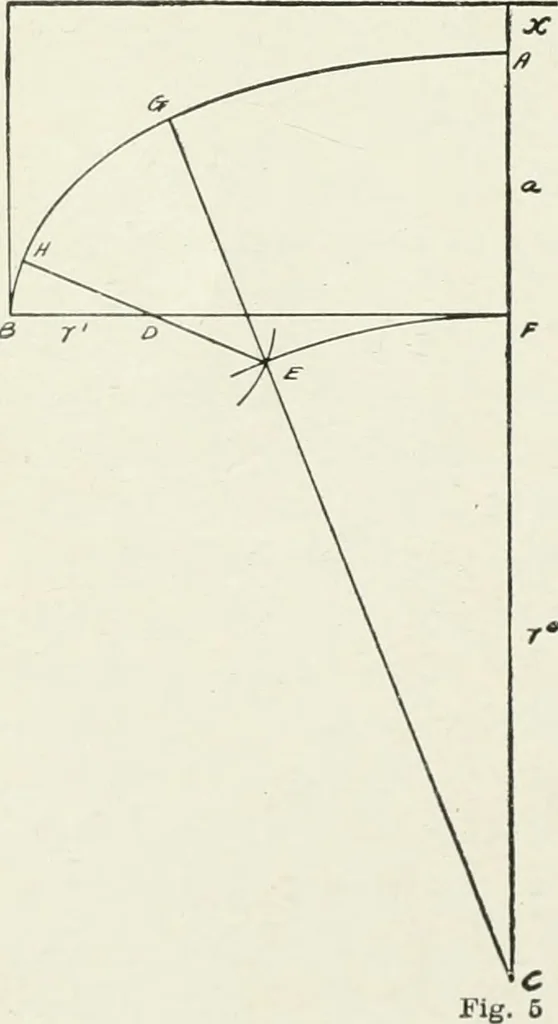

perwidth can be found to properly withstand the earthpressure. For bridges, these principles are usefulchiefly for arches under high embankments. In his book on Civil Engineering, page 420, Ran-kine gives the following approximate method fordrawing the form of a hydrostatic curve about fivecenters… … 1 + 1 + y y + 30 a BF--=2/ DE ^- AF—BD PLAIN CONCRETE ARCH BRIDGES. 27 111 Figure 5, let FB be the half span and FA therise of the proposed arch. ]Make AC=;°, andBDz:=r, the radius of curvature at the crown andspringing as calculated from the above formulae.Then C will be one of the centers and D…
