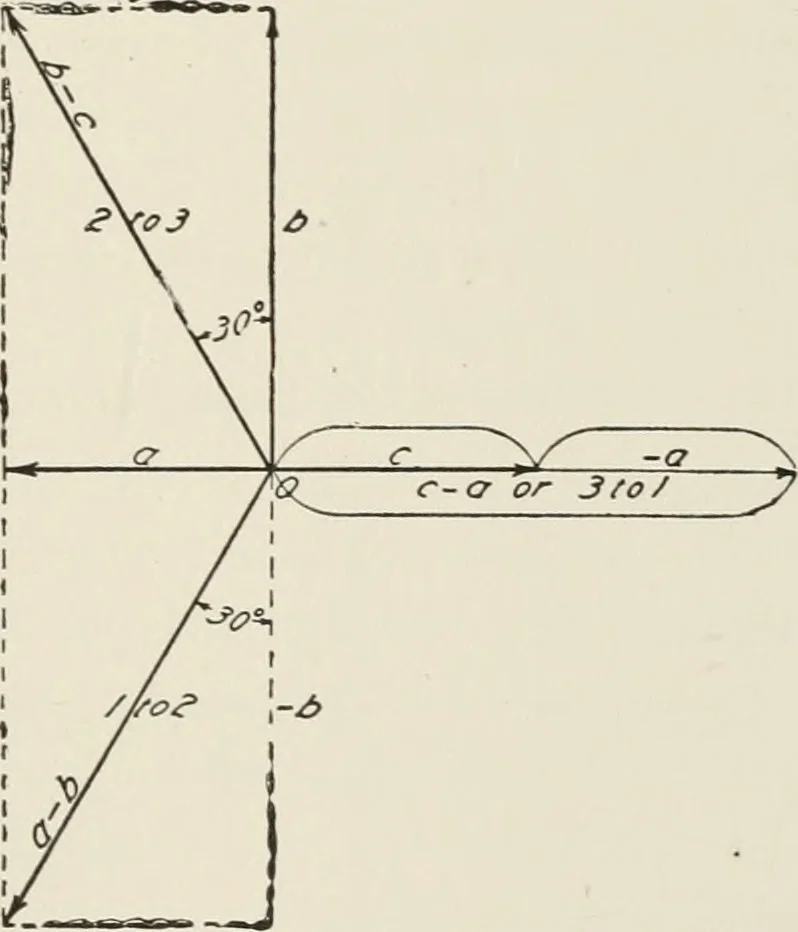

have 50 turns, bwill have approximately 87 turns.The points 1, 2, and 3, Fig.230, are at the angles of an equilat-eral triangle. The point 0 repre-sents the common junction pointof the three terminals, one fromeach of the coils a, b, and c. Theother terminals of these coils areconnected to the… … Fig. 232. Vector Diagram of E.M.F.Relations in Scott Transformer 273 260 ALTERNATING-CURRENT MACHINERY From these relations and keeping in mind the ratios of the wind-ings of the coils in Fig. 234, it may be seen that the electromotiveforce a helps to push current in a receiving circuit from main 1…
