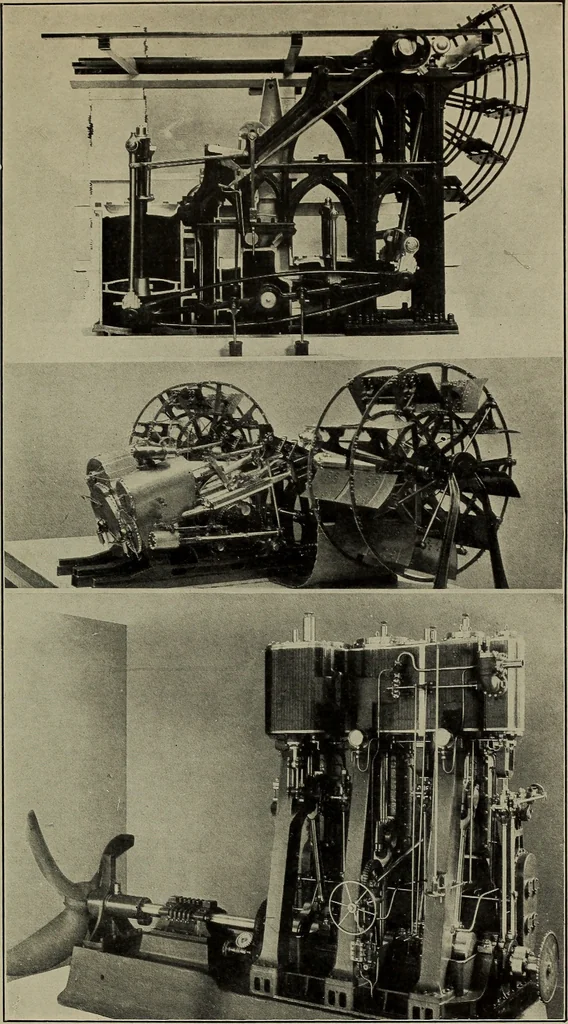

onnects with the cool condenser, whereas in the com-pound engine the exhaust from the first cylinder con-nects with the second cylinder at only slightly lowertemperature. In many modem engines a third cylinder and some-times even a fourth is added, constituting what arecalled respectively… … COMPOUND ENGINES. The lower figure illustrates the use of a modern compound engine, di-rectly operating the propeller shaft of a steamship. The middle figureshows a similarly direct apphcation of power to the axes of paddle wheels.The upper figure shows the apphcation of power through a walking…
