Constructive drawing. A text-book for home instruction, high schools, manual training schools, technical schools and universities (1904)
Hanstein, Herman. [from old catalog] · Chicago, New York [etc.] Keuffel & Esser co. · leaf 44

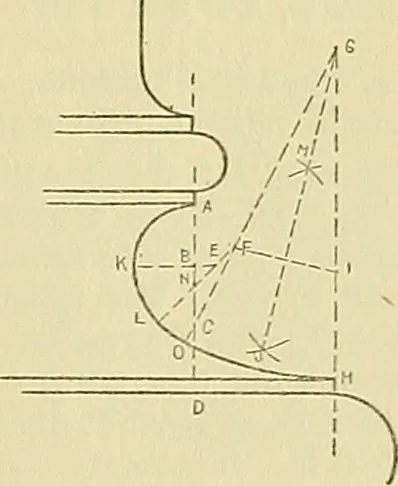

Haii:;t€ins Constructive Draining. 73.—Fig. 1.—Problem.—To construct three tangentialcircles when their radii are given.Solution.—Let A, B and C be the given radii.Draw line G F E ^ A + B. Describe circle G withradius G F = A, and circle E with radius E F = B.With G as center, and A + C as radius,…
Mechanical drawing
