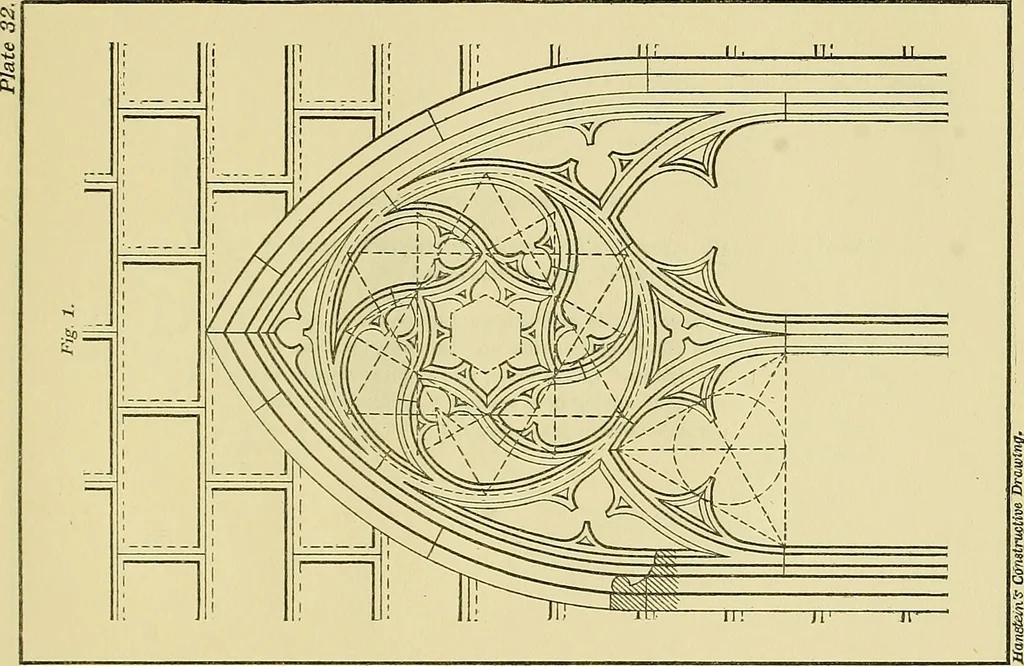

APPLICATIONS TO ARCHITECTUBE. 139.—Fig. 1.—Problem.—To construct a design foran ornamented Gothic arch in stone. This construction is based on principles ex-plained and described in the previous part of thisvolume, and its solution should not present anyserious obstruction to the student.… … APPLICATIONS TO MECHANICS. 140.— Fig. 1.— Problem.— To construct a pair ofspur-wheels, their relation tohel : 2. To solve this problem we require the construc-tion of two epicycloids and two hypocycloids tothe ^flanks of the teeth, and it is advisable toenlist the advice of a teacher, to execute…
