Corporation of Dundee Electricity supply department (1912)
Dundee, Scot. Electricity supply dept. [from old catalog] · [Dundee, J. Leng & co., ltd., printer] · leaf 27

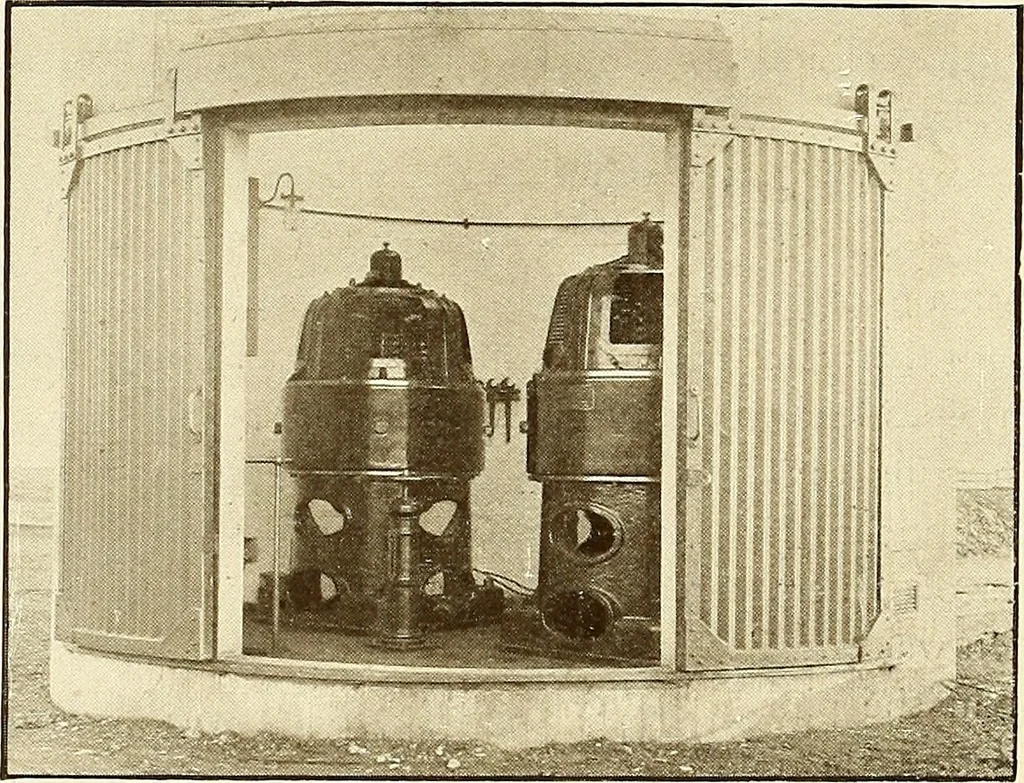

ns of 21 caulking strips. On each turbine there is a hand-operated overload valve, which admits high-pressuresteam to the second expansion rings. The governor is of the centrifugal type, and acts directly on thethrottle valve. It is also fitted with electrical control gear, which is operated from… … Vertical Spindle Motors in Pump Room. Condensing Plant.—Immediately below each turbine is a Contraflo Surface Condenser of 3,400square feet cooling surface. To allow for expansion and prevent distortion of the turbine casing, thecondenser is mounted on springs. Each condenser has about 2,000 tubes,…
Electrical engineering
