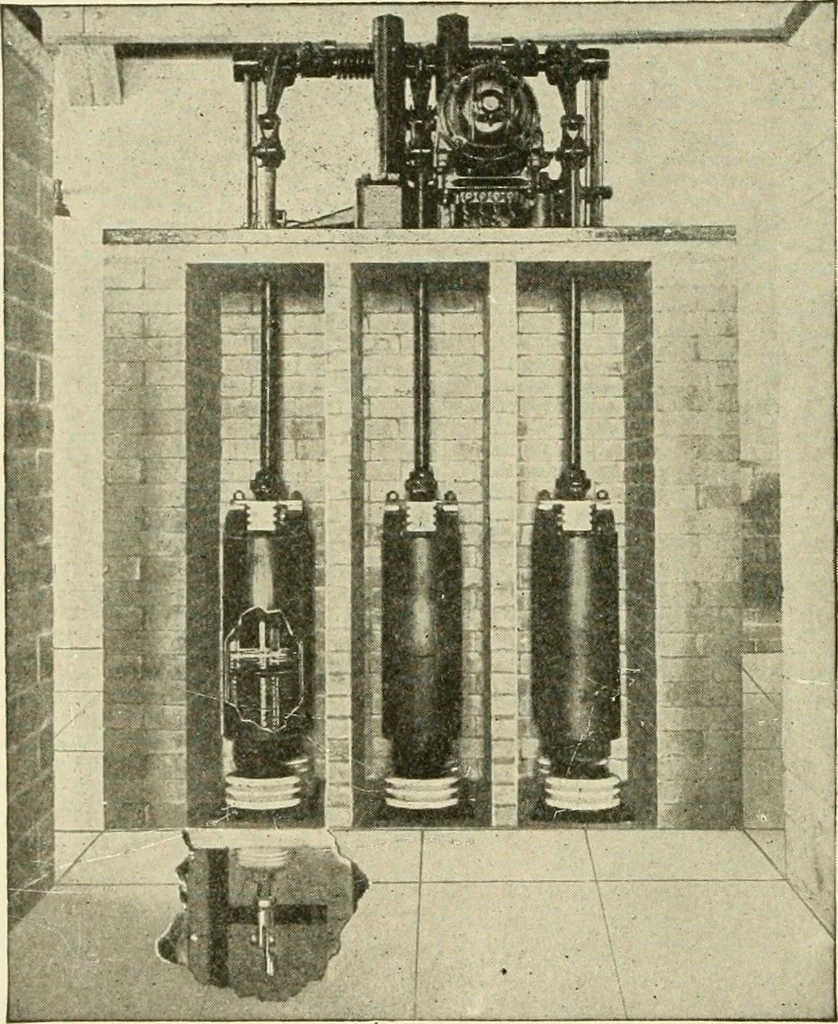

these switches. The pots are 189 92 SWITCHBOARDS mounted one back of the other in compartments, the contacts movedownward to close the switch and are operated by a motor mechan-ism on top of the celL This mechanism does not operate theswitch directly but through large coil springs which are… … Fi. 59. General Electric Triple-Pole Single-Throw 15,000-VoltOil Break Switch Operated by MotorCourtesy of General Electric Company have the main contacts outside the pots, but the arc Is brokenunder the oil. Pneumatically-Operated. For very high voltages, switches similarin action to the ones in…
