Cotton manufacture: a manual of practical instruction in the processes of opening, carding, combing, drawing, doubling, and spinning of cotton, and the methods of dyeing and preparing goods for the market (1894)
Lister, John, 1920- · London, C. Lockwood · leaf 42

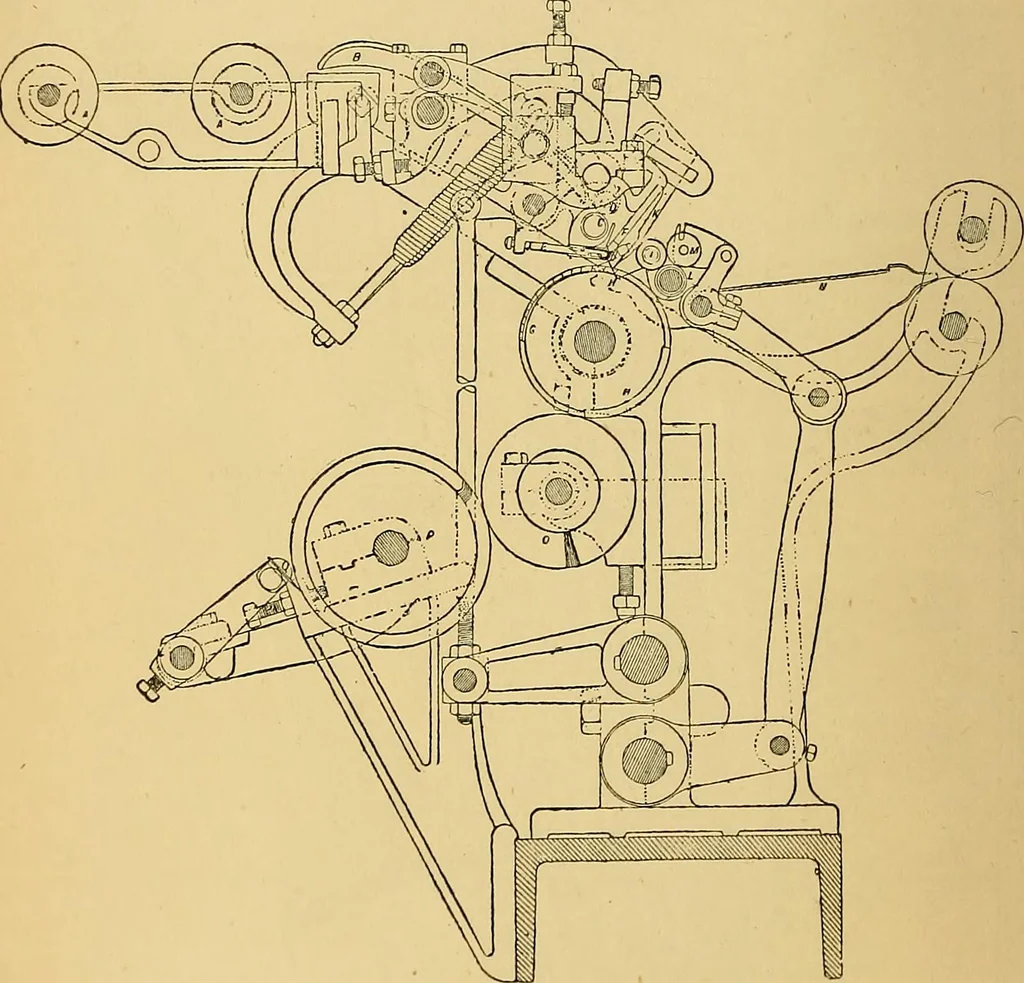

28 COTTON MANUFACTURE. The combs are very liable to injury, but can be easily replaced.The parts are adjustable, and are so regulated that a great amount ofwear is obviated. A standard type of this machine is shown inFig. II, which cannot fail to be appreciated by fine spinners.Although the details… … fig. 12.—Cotton-Combing Machine. Stand, a close study of the sectional drawing will show that it issimple enough. The operation of combing is, no doubt, a delicate one. Some ofthese machines are made with six and eight heads ; but, as the workof each head is similar, one only need be described. A…
