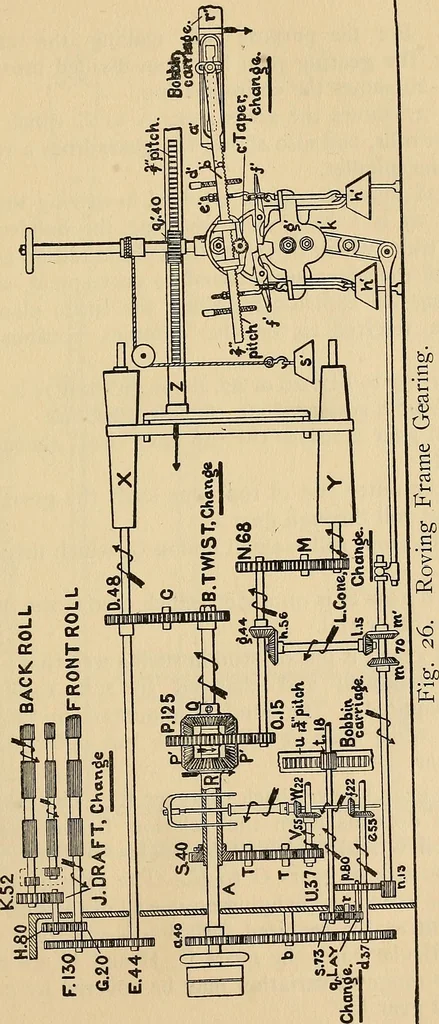

Pinion. m, m. Strike Bevels. n. Broad Pinion for Lifter. p. Driven Gear for Lifter Train. q. Lay Gear. r. Intermediate. s. Lifting Gear. t. Lifting Rack Pinion. u. Lifting Rack. a Two-Bar, Attaciiea to Bobbin Rail. b Taper Rack Bar or Monkey Tail. c. Taper Pinion. d. Adjusting Screw for Pigeon Wing… … S <5 * to CJ ^ u: « Li 124 STUBBING AND ROVING. 106. For the purpose of making- the explanationclearer, the gearing plan has been divided into sections. Fig. 26 shows the entire gearing. Fig. 27 shows the gears from A to K which drive thebottom rolls, and also shows the gears from a to f…
