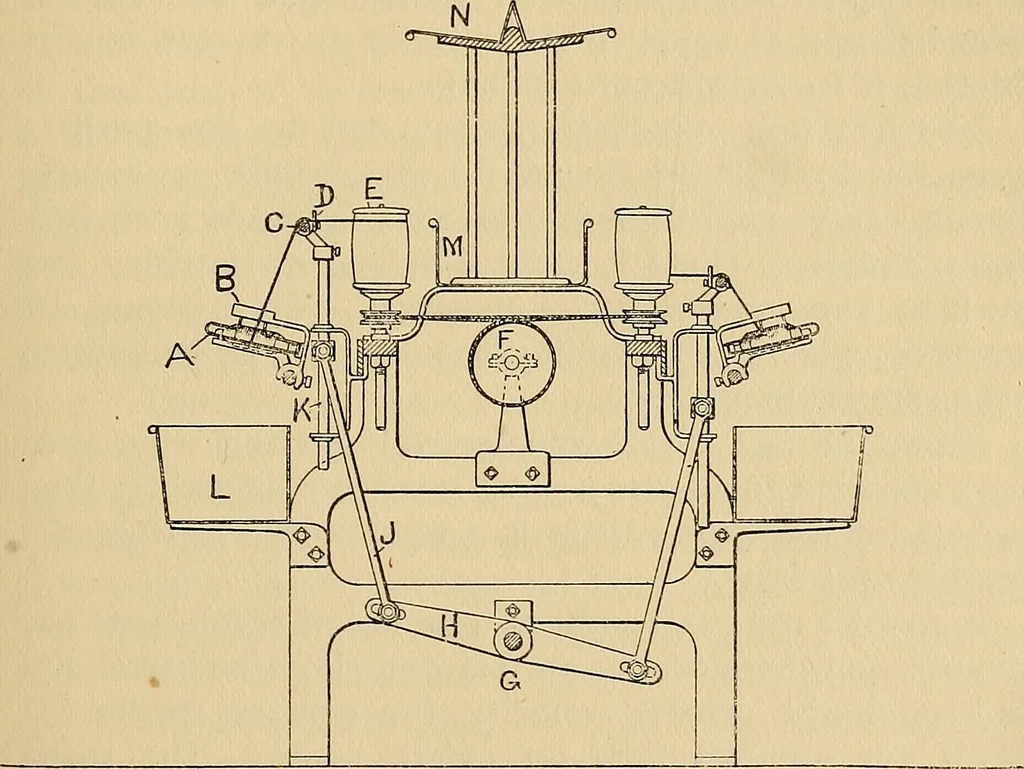

n and wound with irregulartension, and to rewind it regularly on spools, which holdthe yarn frojn 10 to 15 bobbins. Spooler.—Fig. 43.—Lkttkring. A. Spinning Bobbin, in Holder B. Bobbin Holder C. Traverse Rod D. Thread Guide E. Spool, being wound F. Tin Cylinder G. Rock Shaft H. Rock Arm J.… … Fig. 43. Spooler, 224 PREPARATION OF YARN FOR WEAVING. Yarn from bobbin passes through thread guide, which,is fast to the traverse rod. Traverse rod moves up and down, a distance equal tothe lift or length of spool barrel, and guides the yarnevenly on the spool. Spindles are driven from tin…
