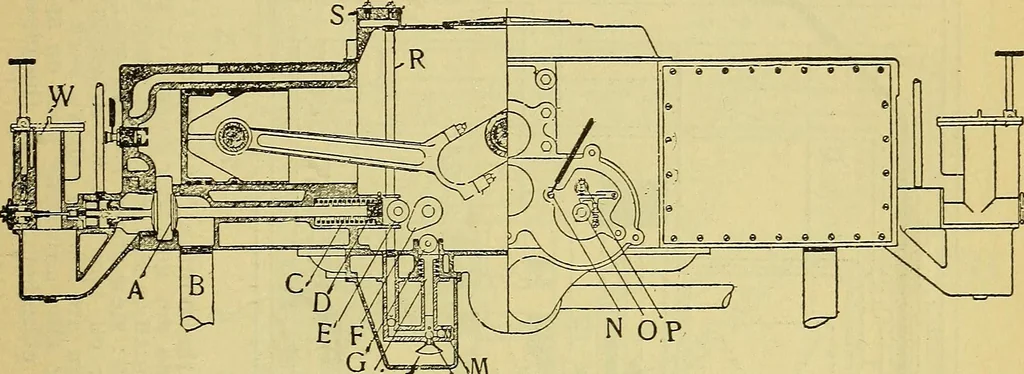

ion to the brake, already mentioned, there is a specialemergency brake, operated by a foot pedal, which is to be usedonly when the lever fails to operate. The steering in the latestmodels is controlled by a hand-wheel actuating an irreversibleworm gear, somewhat after the design of the Panhard… … /~Sb H* L Fig. 281.—Sectional Diagram of the Winton Two-cylinder Motor and Parts.A, exhaust valve; B, pipe leading exhaust gases to muffler; C, exhaustvalve spring; D, set screw; E, roller engaging cam, F, which also en-gages with roller, G, and operates oil pump piston, H; K, filter for oilforced…
