Cotton mill processes and calculations. An elementary text book for the use of textile schools and for home study .. (1902)
Tompkins, Daniel Augustus, 1851-1914 · Charlotte, N.C., The author · leaf 247

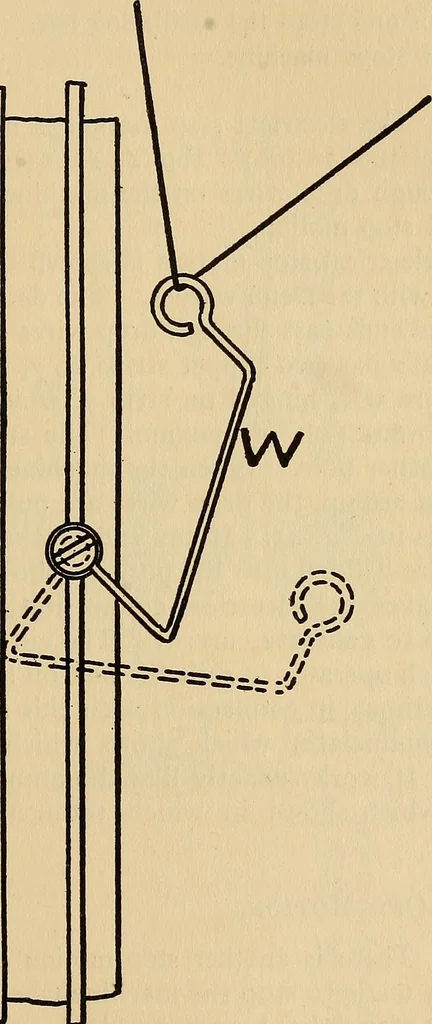

Fig. 44 belong to a mechanical stopmotion. The bars J are caused to oscillate by the runningof machine. As long as each end is passing properlythrough its eye, the bars continue to oscillate. If oneend breaks down the corresponding eye falls and obstructsthe oscillation. These bars are so arranged… … X Y Fig. 45. Electric Stop Motion on Creel. 232 PREPARATION OF YARN FOR WEAVING. belt on to loose pulley. Thus, when an end breaks, a dropwire falls and stops the oscillating bar. This in turn shiftsbelt and stops machine. 243. The electrical stop motion is made on the princi-ples explained in…
