Cotton mill processes and calculations. An elementary text book for the use of textile schools and for home study (1899)
Tompkins, Daniel Augustus, 1851-1914 · Charlotte, N.C., The author · leaf 192

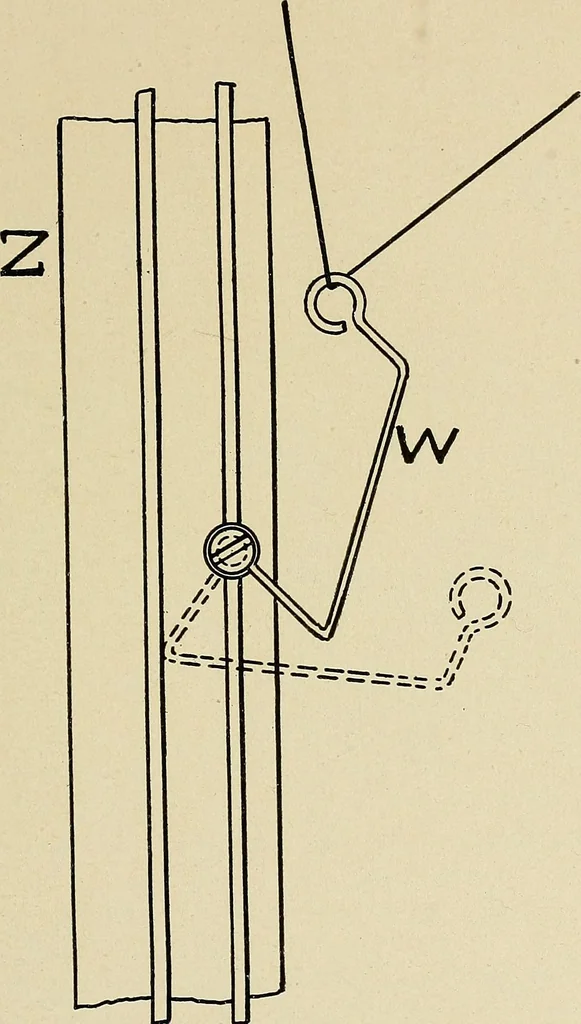

stop motion is made on the princi-ples explained in (49). Fig. 33 shows the warp ends pass-ing through drop wires on the machine. This is themechanical stop motion. The electrical stop motion isshown on the creel in connection with the Denn warper.The detail is shown in Fig. 34. The ends pass… … X Y Fig. 34. Llectric Stop Motion on Creel. 183 to the other pole. When the machine is running and allthe ends are up, the drop wires are pulled up as shown infull lines in Fig. 34. If any end breaks, its correspondingdrop wire will fall into the position shown by dotted lines.This makes the…
