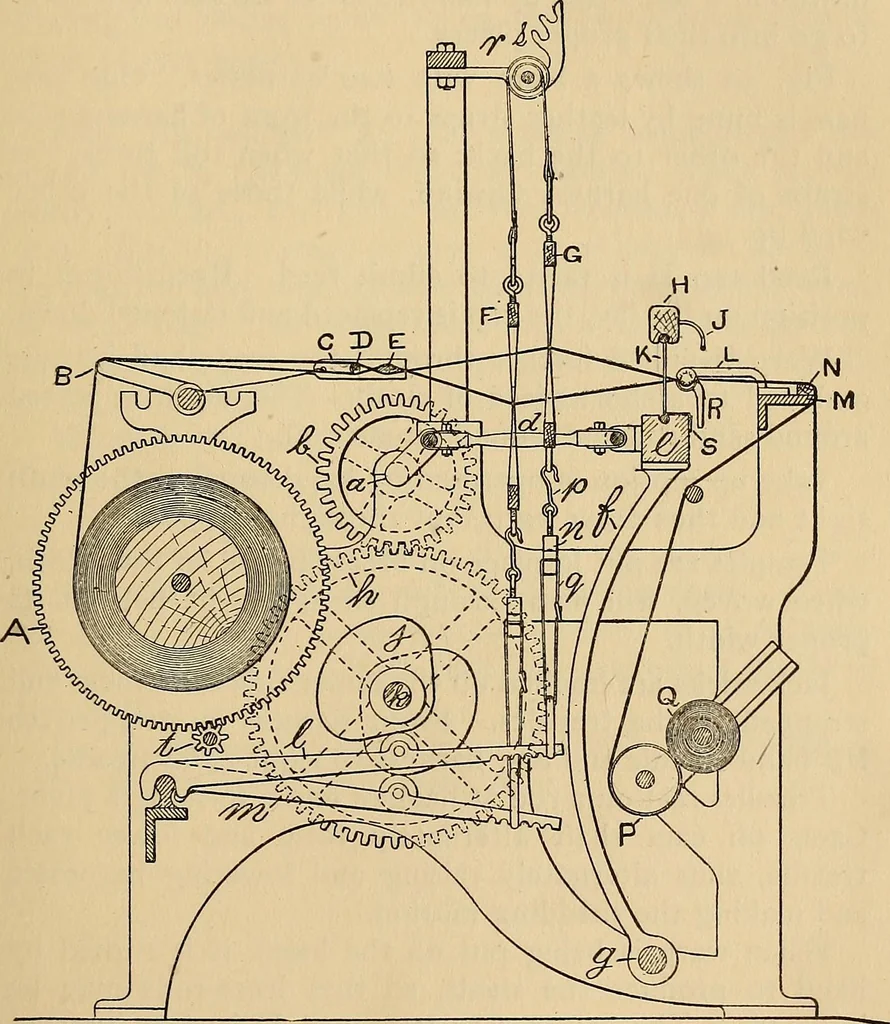

p. D Rear Lease Rod. E Front Lease Rod. F Rear Harness.. G Front Flarness. LI Reed Cap. J Shuttle Guard. K Reed. L Temple. M Breast Beam. . N Breast Strip. P Sand Roll. Q Cloth Roll. R Heel of Temple. S Leather on Lay. a Crank Shaft. b Gear on Crank Shaft. d Connecting Rod. e Lay (sometimes called… … Fig. 50. Plain Loom.—Section. 262 WEAVING. Plain Loom.—Prockss. 285. The warp on the beam, with harness and reed at-tached, is put in place at the back of loom. Beam isunwound a few turns by hand to allow harness and reedsto go into their proper places. Fig. 50 shows a loom with two harnesses. One…
