Cotton mill processes and calculations. An elementary text book for the use of textile schools and for home study .. (1902)
Tompkins, Daniel Augustus, 1851-1914 · Charlotte, N.C., The author · leaf 51

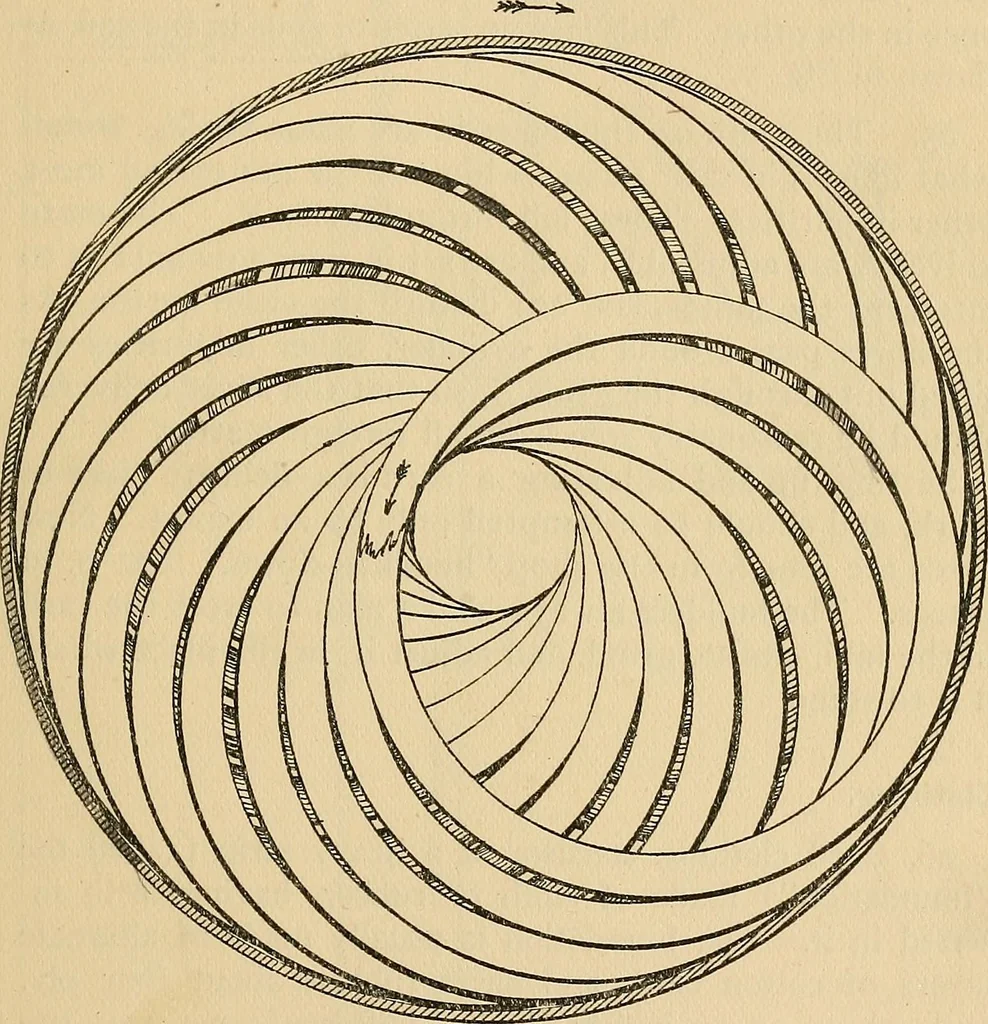

calender rollsH. The sheet is thus formed into a round mass, calledsliver. Condenser rolls J take sliver and deliver it to coilerhead. Coiler is a revolving plate with a hole in it, revolvingin such a way as to deliver sliver in coils in the can K. Thecan stands on a plate near floor, which… … Fig. 7. Coils in Can. 38 CARDING. Fig. 8 shows how sHver is delivered from calenderrolls R on card, taken to condenser rolls P, and deliveredthrough hole T in coiler head to can U. By following the gearing, it will be seen that the coilerhead turns 20 times in one direction while the can turnsonce…
