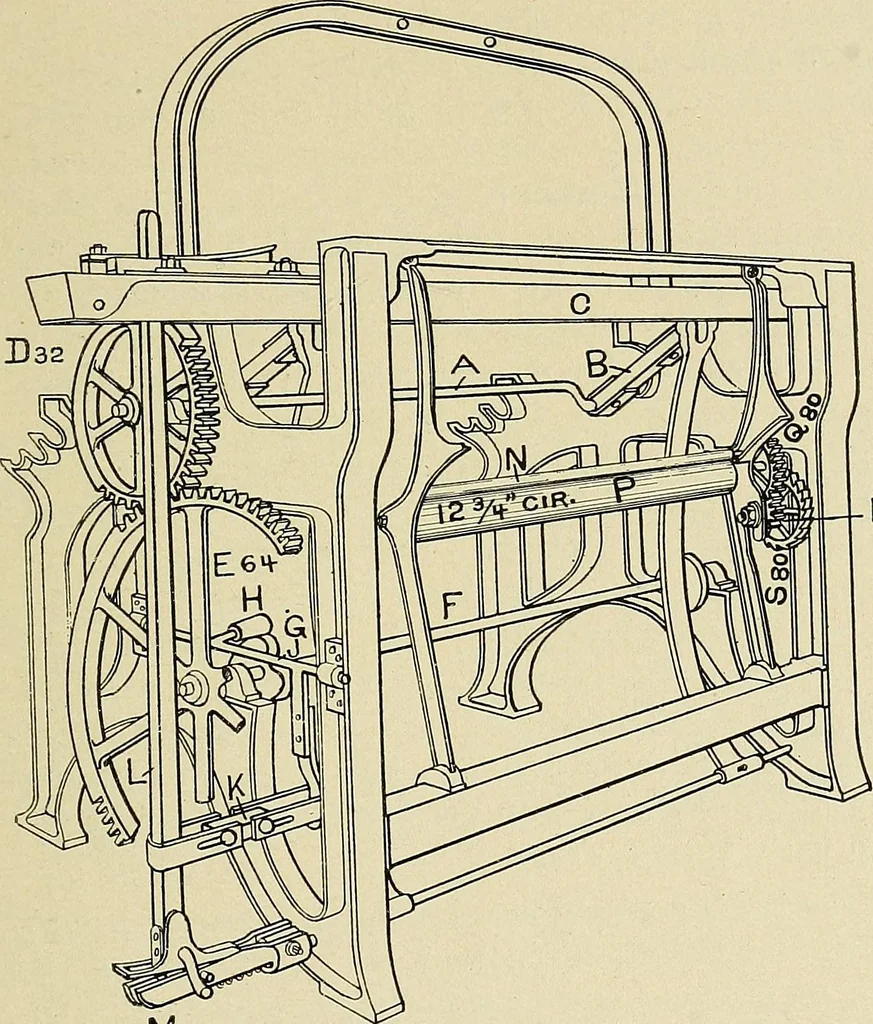

ing shaft. Hencethe speed of loom is frequently referred to as so manypicks per minute. Each pick puts one filling thread inthe cloth. Fig. 40 shows the gearing and general arrangement ofcams, &c. on one style of plain loom. PLAIN LOOM GEARING.—FIG. 40.—LETTERING. A Crank Shaft. B Connecting… … picK qe^H Fig. 40. Plain Loom Gearing. 214: 0 Sand Roll Gear.R Pick Gear. S Take up Ratchet. 255. The primary motion on a loom is the crank shaft. 1 he driving pulley is on this shaft, and hence its move-ments are uniform. All adjustments in the movementof the various parts of the loom must be made…
