A course in mechanical drawing for evening schools and self-instruction (1896)
Rouillion, Louis · Boston, New York, The Prang educational company · leaf 31

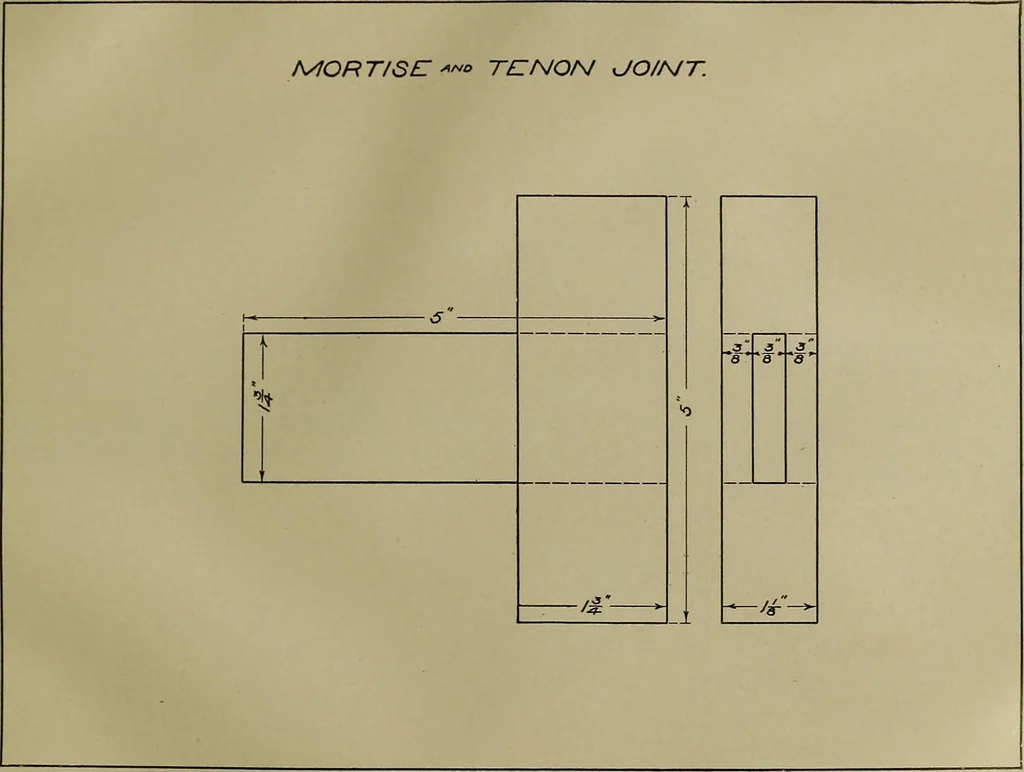

22 COURSE IN MECHANICAL DRAWING. SHEET VI. Mortise and Tenon Joint. An application of some of the foregoing principles cut in the centre of the end piece, into which a tenon, is here made in a simple working drawing of a cut upon the other piece, closely fits. This is clearly mortise and tenon… … 24 COURSE IN MECHANICAL DRA WING. SHEET VII. Door Joint. A working drawing of a slightly more complicatedjoint is here shown. The front and side views aresufficient to make the joint from, but the top view isadded to make the method of constructing the jointsomewhat clearer. This joint is an end…
Mechanical drawing
