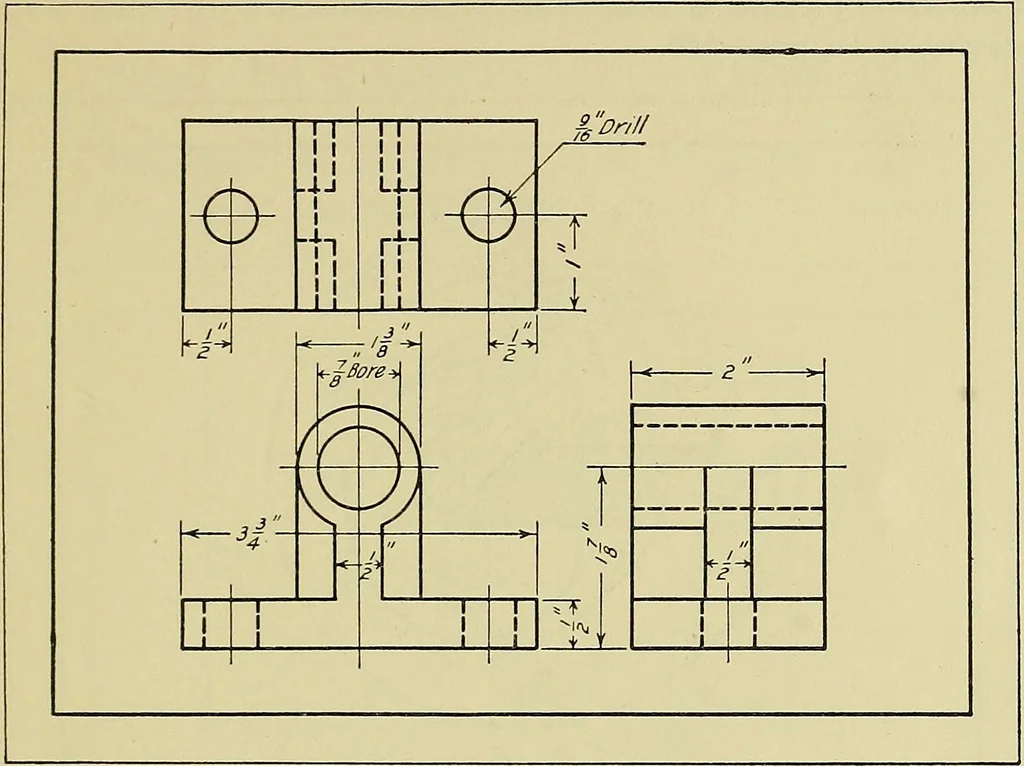

ric, inasmuch as suchfigures will be drawn in their true form in a cabinet drawing.For example, an object which has a number of circles parallelto one plane is more easily represented in cabinet than inisometric, since the circles can be drawn with the compass.Fig. 356. ISOMETRIC AND CABINET… … Fig. 357. Air Starter Bearing Instructions; 1. Make an orthographic drawing to scale. 2. Draw lines for the cabinet drawing in the direction of thethree axes; one vertical, one horizontal, and one at 45°. 3. Decide upon the general dimension of the object to bemeasured in the direction of each…
