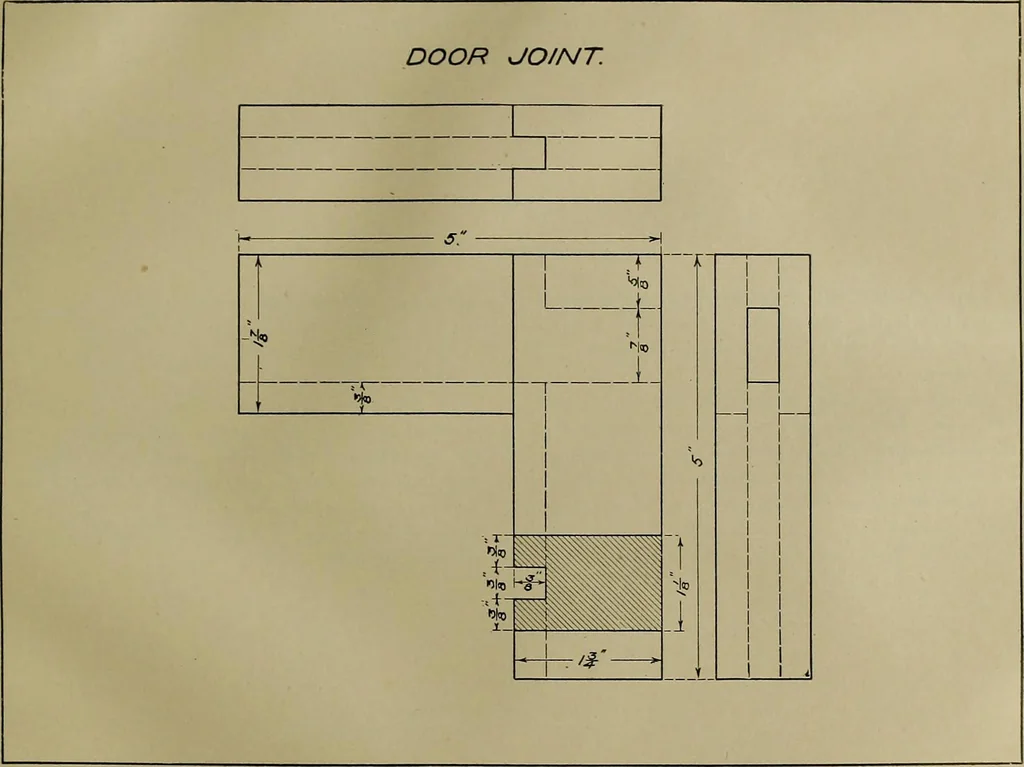

ient to make the joint from, but the top view isadded to make the method of constructing the jointsomewhat clearer. This joint is an end mortise andtenon joint and has a rabbet cut on the inside faces. The rabbet is shown by the section at the lower partof the drawing. The section illustrates a… … 26 COURSE JN MECHANICAL DRAWING. SHEET VIII. Development of Cube. By the development of the surface of an object ismeant the laying out of the pattern which, whenproperly folded, will exactly represent the surface ofthe object. A simple and easily conceived development is thatof a cube. It is…
