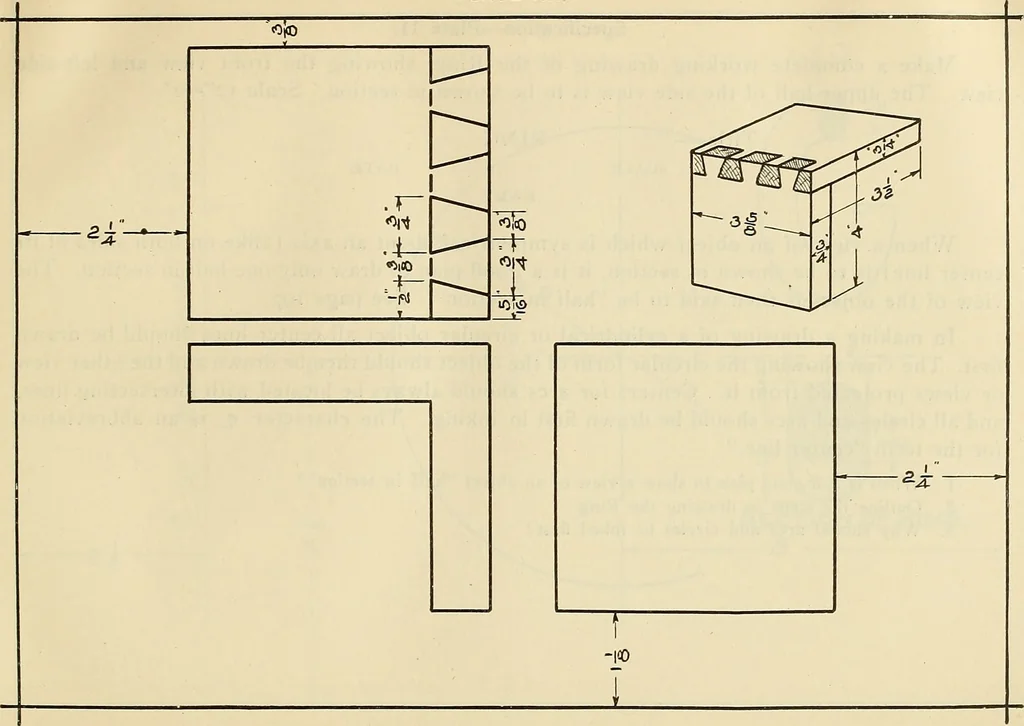

48 MECHANICAL DRAWING PROBLEMS Specification—Plate lOA. Make a complete working drawing of the Dovetail Joint, showing the front view, topview and right-side view. Scale I2==i. Title:— DOVETAIL JOINT SCALE DATE NAME 1, Where have you seen a joint of this kind used? PLATE lOA … ;0 MECHANICAL DRAWING PROBLEMS Specification—Plate 11. Make a complete working drawing of the Ring, showing the front view and left-sideview. The upper half of the side view is to be shown in section. Scale i2=i. Title:— RING SCALE DATE NAME When a view of an object which is symmetrical about an…
