A course on the stresses in bridge and roof trusses, arched ribs and suspension bridges (1904)
Burr, William H. (William Hubert), 1861-1934 · New York : Wiley · leaf 134

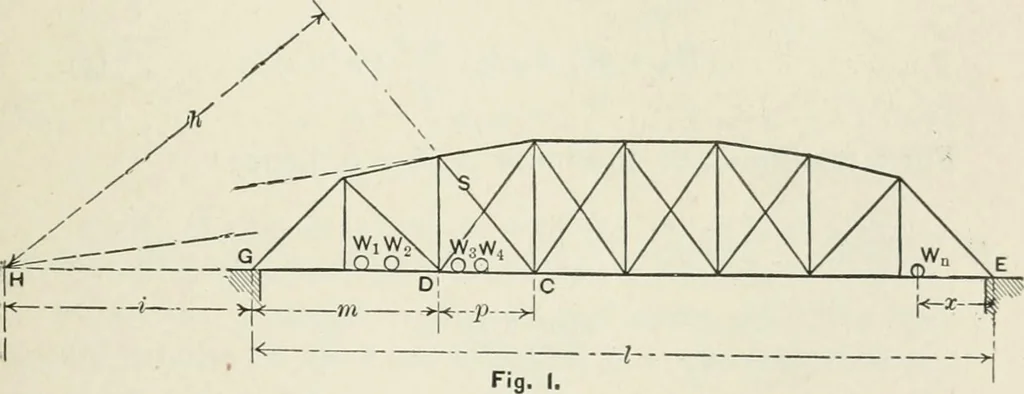

ccur in connection with types ofstructures ordinarily used in engineering practice. That oneto be treated first is the case of the intersection of the chordsections, in any panel, lying below the inclined web memberin the same panel; the other is the case of the intersectionlying above the inclined… … Let / be the length of span ; i the distance from end ofspan to the point of intersection, H, of the chord sections inthe panel in question ; m the distance from the end of thespan to the same panel, whose length is// 5 the stress inthe web member under consideration, and h its lever armabout H; a,…
Trusses · Bridges
