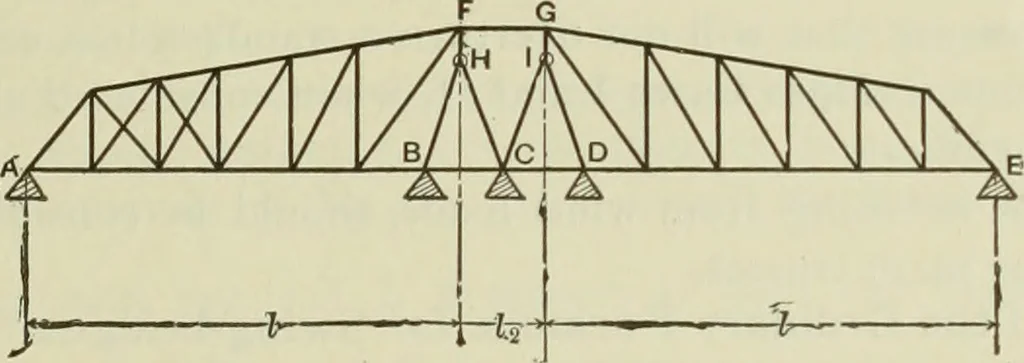

ram Fig. 224, are given here. The student is left to complete theanalysis. 177a. Rim-bearing Turn-table ; Four Supports.—Equal Moments at the Centre Sup-ports; also, Equal Loads on the Turn-table spaced at Equal Distances.—Fig. 231.—In this thetwo triangular frames BHC and CID support the truss by… … Fig. 231. ID is such that under maximum loads at H and / the supports B, C, and D are equally loaded.This arrangement brings the weight on the turn-table uniformly distributed over six points.These points can be spaced equal distances apart on the turn-table. Under all conditions, themoments at the…
