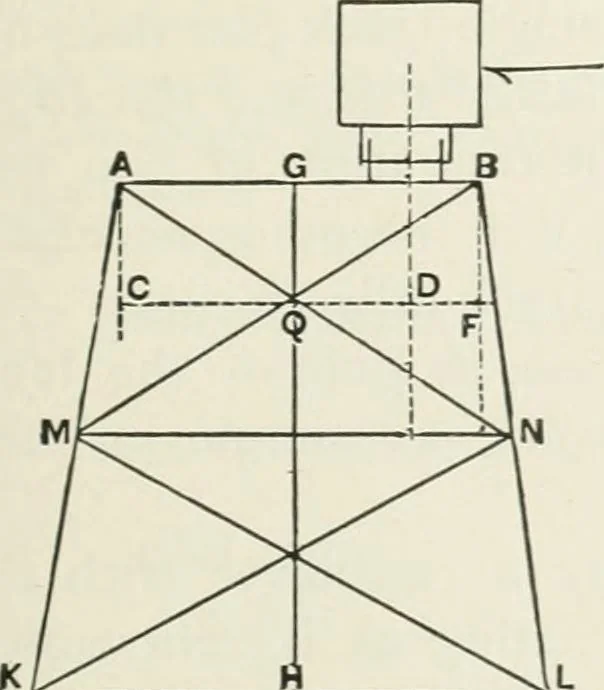

Fig 4. If GH does not act: CF W. DF In the latter case, the beam AB will carry Wi= ^ W to A. 394 IVJND STRESSES AND BRACED PIERS. If the angle FBN = CAM— a, the force h = zv tan a — u>i tan a will act along /^i5 as an unbalanced horizontal one. If GHacts, Wx tan a becomes equal to zero. Then in…
