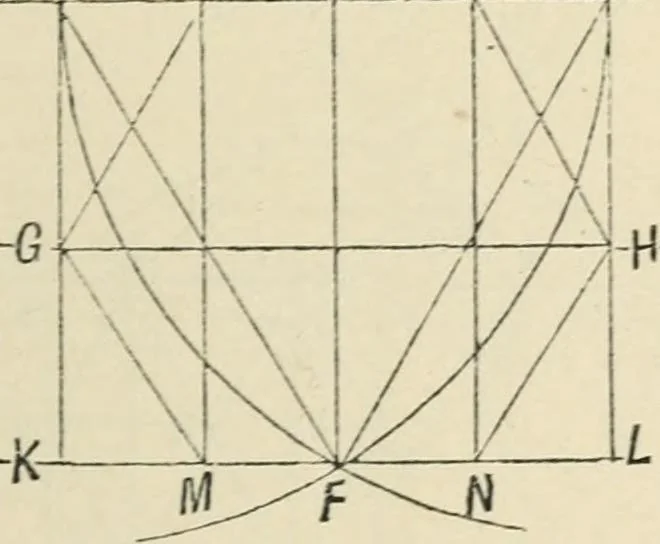

also to P.P., which it touches at a point 5 toleft ; the vertex of the triangle is directed downwards, andone side is horizontal. The triangle is buried one-fourth inthe ground. Draw it. THE HEXAGON. 47 The Hexagon. A hexagon is a figure bounded by six sides. When thesides and angles are all equal… … L--- Elg. 26. Let B.L. = base line, and AB given side of hexagon, and ingiven position. Bisect AB in C, make AD and BE each equalBC; on DE describe equilateral triangle DFE, and constructoblong DL. Bisect DK in G ; draw GH parallel to KL; joinAG, GM, BH and HX. With centre D and distances DGand DK…
