The microscope; an introduction to the microscopic methods and to histology (1911)
Gage, Simon Henry, 1851-1944 · [Ithaca, N.Y.] The Comstock Publishing Company · leaf 47

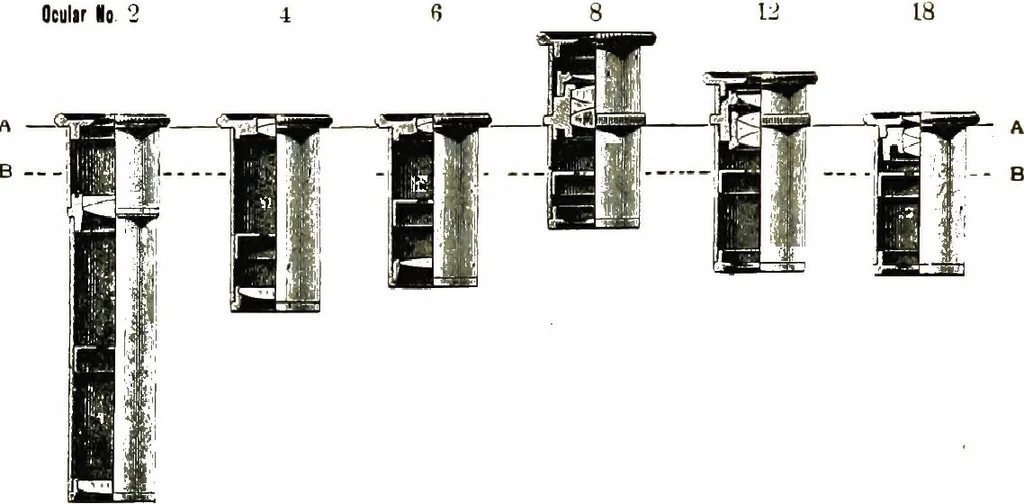

esigned by Huygens forthe telescope, but adapted also to the microscope. It is the one now mostcommonly employed. It consists of a field-lens or collective (Fig. 36. ), aid- 28 MICROSCOPE AKD ACCESSORIES CH.I1 ing the objective in forming the real image, and an eye-lens which magnifiesthe real… … Fig. 37. Compensating Oculars of Zeiss, with section removed to show theconstruction. The line A-A is at the level of the upper end of the tube of themicroscope while B-B represents the lower focal points. It will be seen thatthe mounting is so arranged that the lower focal points in all are in the…
