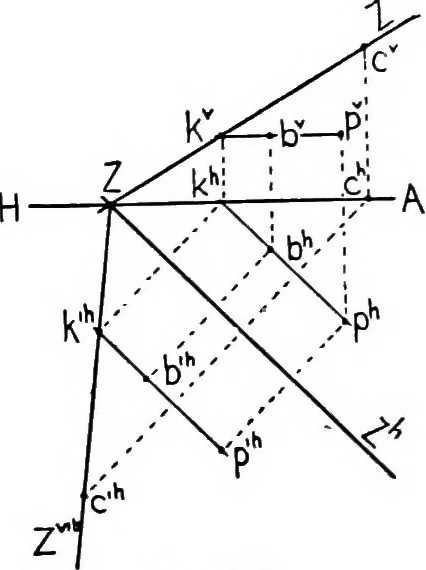

H projection of the point will be somewhereon that line. Draw such a line through /c*. Its intersectionwith HA will determine A;*, and a vertical line drawn from fc*to ZZ will give k. Through P and k draw the projections of the auxiliary line,/i^p* and kp. The required projections of the point b… … Fig. 107 106 DESCRIPTIVE GEOMETRY [VI. § 96 96. To Find the Projections of a Given Figure When it Liesin a Given Plane. This problem requires merely an extensionand application of the principles of § 95, and constitutes thegeneral case of the problem stated in § 46. In Fig. 108, let the plane Z be…
