Young, George, jr, Baxter, Hubert Eugene, joint author · New York, The Macmillan Co. · leaf 168

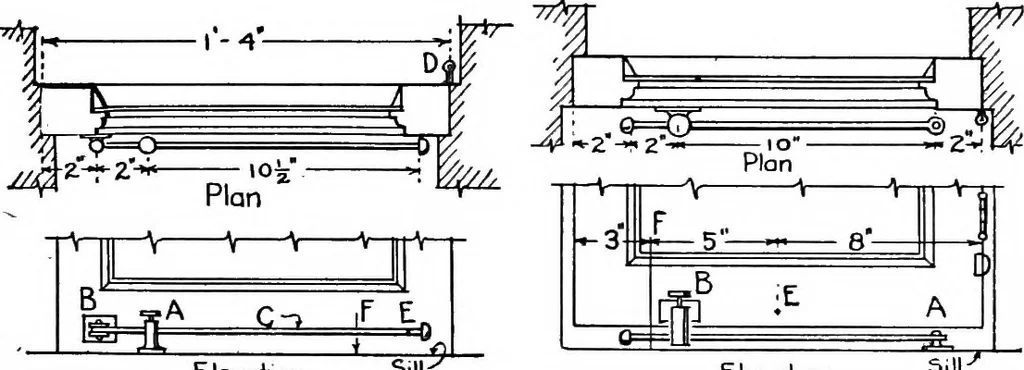

he plan asshown, placing it on left hand half of a standard sheet divided ver-tically. Place hinge 3 below top border. Find: 1 (a) The pathtraced by the end of the rod when the sash is opened. 1 (6) The posi-tion of the sash when its swing is checked by the rod. 2. On righthalf of sheet, redraw the… … ElevationFig. 149 Sill Elevation. ^ FiQ. 150 EXERCISE SHEET LI Repeat Problem L using an in-swinging sash adjuster like thatshown in Fig. 150. EXERCISE SHEET Lit (a) Draw both of the projections of a helix generated on a cylinder2 in diameter and 3 high, and draw a straight hne tangent to thecurve.…
Geometry, Descriptive
