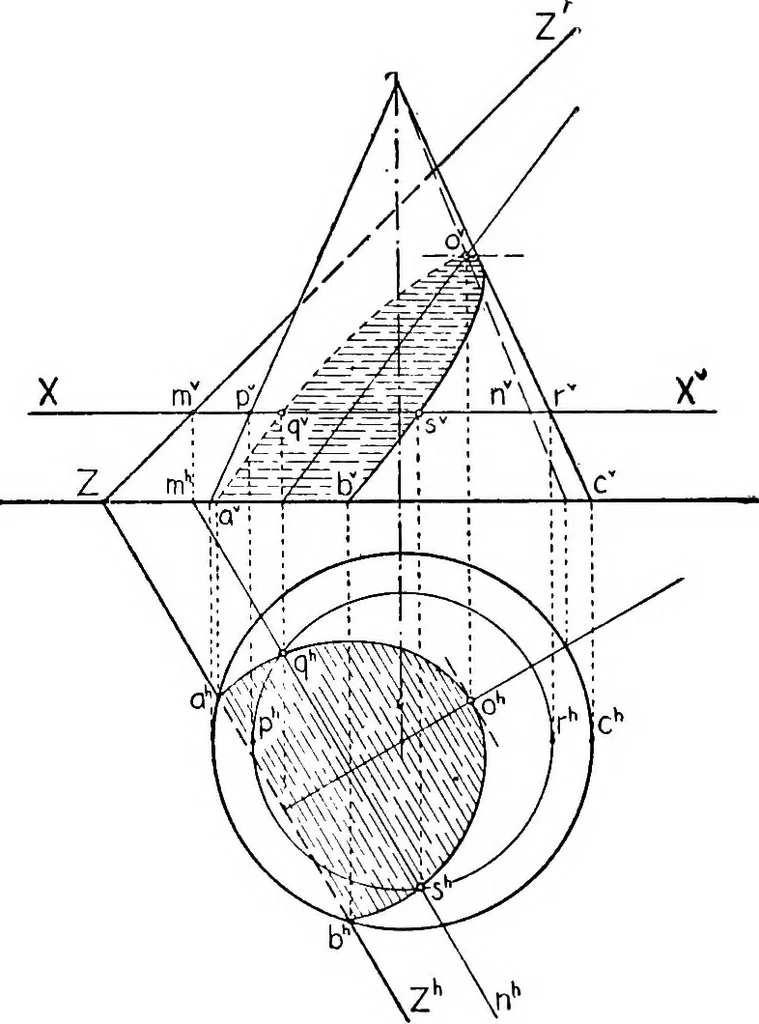

Fig. 161 166 DESCRIPTIVE GEOMETRY [VIII, § 150 150. To Find the Line of Intersection betvsreen a Plane anda Cylinder (or a Cone). I. Right Circular Cone Resting on //. In Fig. 162,let the cone and the plane Z be given, and let their line ofintersection be required. In drawing the figure, planes… … Fig. 162 to // were used as cutting planes. The E plane cuts fromZ the trace ZZ^, and from the cone it cuts the base abV. Thusa and 6 are determined by inspection as points on the line ofintersection. The plane A cuts from Z the line mn. Fromthe cone the plane A cuts a circle whose diameter is p^r.…
