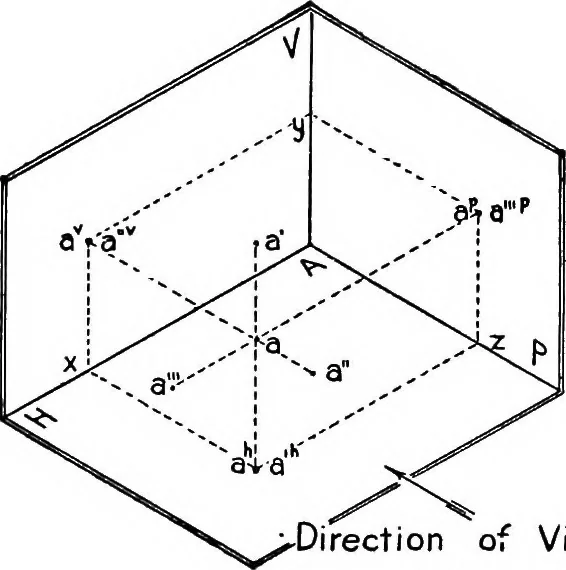

for rapid,sure, and permanent progress. The development of modempractice, infinitely more efiicient and more flexible than the old,was thus made possible. CHAPTER II PROJECTION OF POINTS 6. Introduction. In the previous chapter it was shown, bythe use of Fig. 8, how the projections of a given body… … HA=horizontal axisFA=vertical axisPA = profile axis Direction of ViewFio. 9 7. Fundamentals of Point Projection. Figure 9 shows themethod of orthographic projection applied to a single point.It should be carefully studied in order to fix thoroughly in themind a few fundamental relations. (See…
