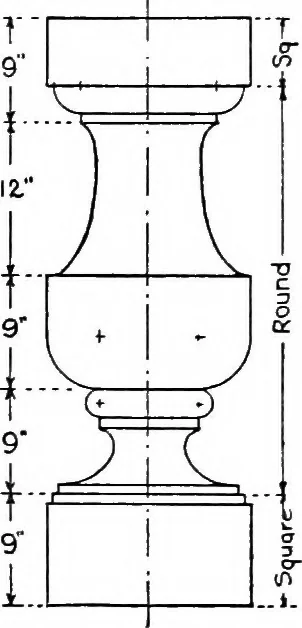

ter in Fig. 273. Placethe center of the base on H, V — 6 from Vand 1 — 6 from the left border line. Scale,3 = 1 - 0. EXERCISE SHEET CXIV (§216) Cast the sun shadows on a warped doorwayrecess, similar to Fig. 223. In drawing thedoorway, let the front arch be semicircular,7 — 0 in diameter; and let… … Fig. 273 EXERCISE SHEET CXV (§216)Cast the sun shadows on Fig. 274. Scale, \ = 1 ■ 0. EXERCISE SHEET CXVI (§220) Figure 275 gives the eleva-tions of various points on a,certain piece of land and thecourse of a stream crossing it.Draw the contour map at ascale of 1 = 20 — 0, indi-cating the contours…
