Young, George, jr, Baxter, Hubert Eugene, joint author · New York, The Macmillan Co. · leaf 55

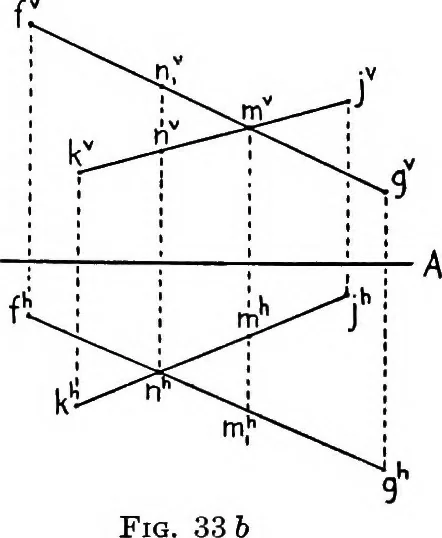

A H Fig. 33 o … the H and V projections of the point of intersection must lieon the same perpendicular to HA. Figure 33 a shows the projections of two lines ab and cd, whichintersect at e. In Fig. 33 b the lines fg and kj, as seen on V,appear to intersect at m. If, however, a perpendicular isdropped from m it will…
Geometry, Descriptive
