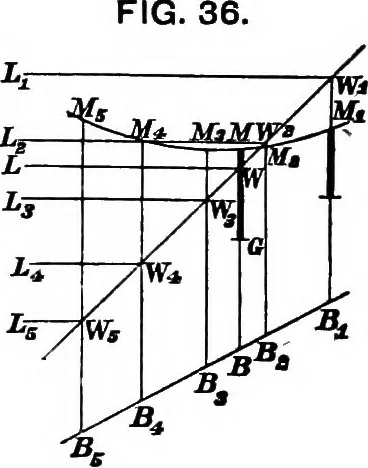

r fixing the position of the meta-centre in any new design. By means of a series of such calculations, it is possible to con-struct a diagram—termed the metacentric diagram —showing thevertical positions of the metacentre and the centre of buoyancy forany mean draught of water between the deep… … ships subjected to great variations of draught. The construction isvery simple. Any horizontal line W^ (Fig. 36) is taken to repre-sent the maximum load-line of the ship. Through any point W,on it a vertical line ^d&-\ is drawn: the depth of the centre ofbuoyancy corresponding to the load-line…
