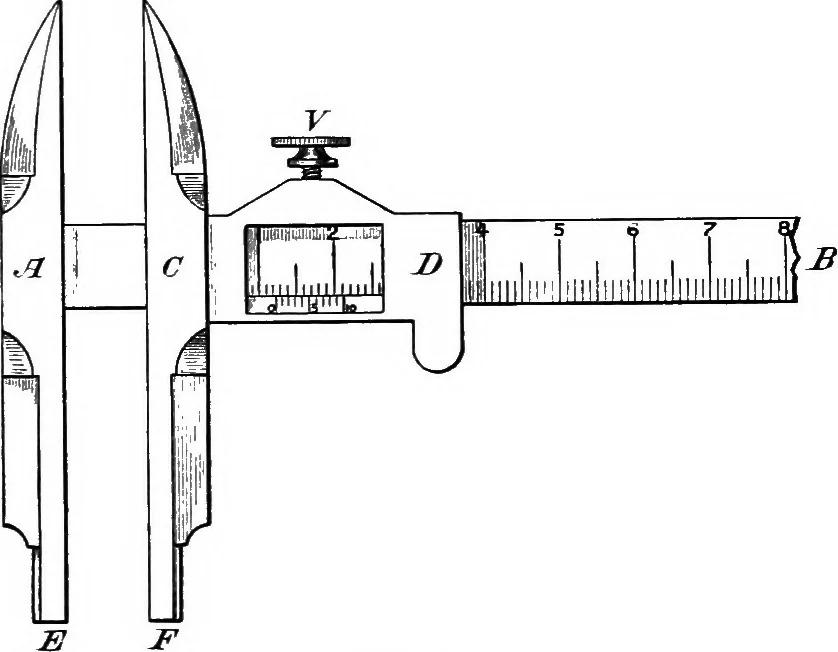

to minutes. Thereading indicated is 130 37. Besides those already described,verniers are sometimes constructed in which « — 1 of theirdivisions are equal to n scale divisions. However, in thiscase no special difficulty will be met with, as the same prin-ciples apply to all classes of verniers. II.… … Fig. 5. ble of being moved along AB, and carries with it a slider CD,which can be fixed by the screw V at any point on AB. Thereis a small rectangular opening in CD, and on one of its bevellededges a vernier is ruled, which is so placed that when the barsEP and FQ are together, the zero on the…
